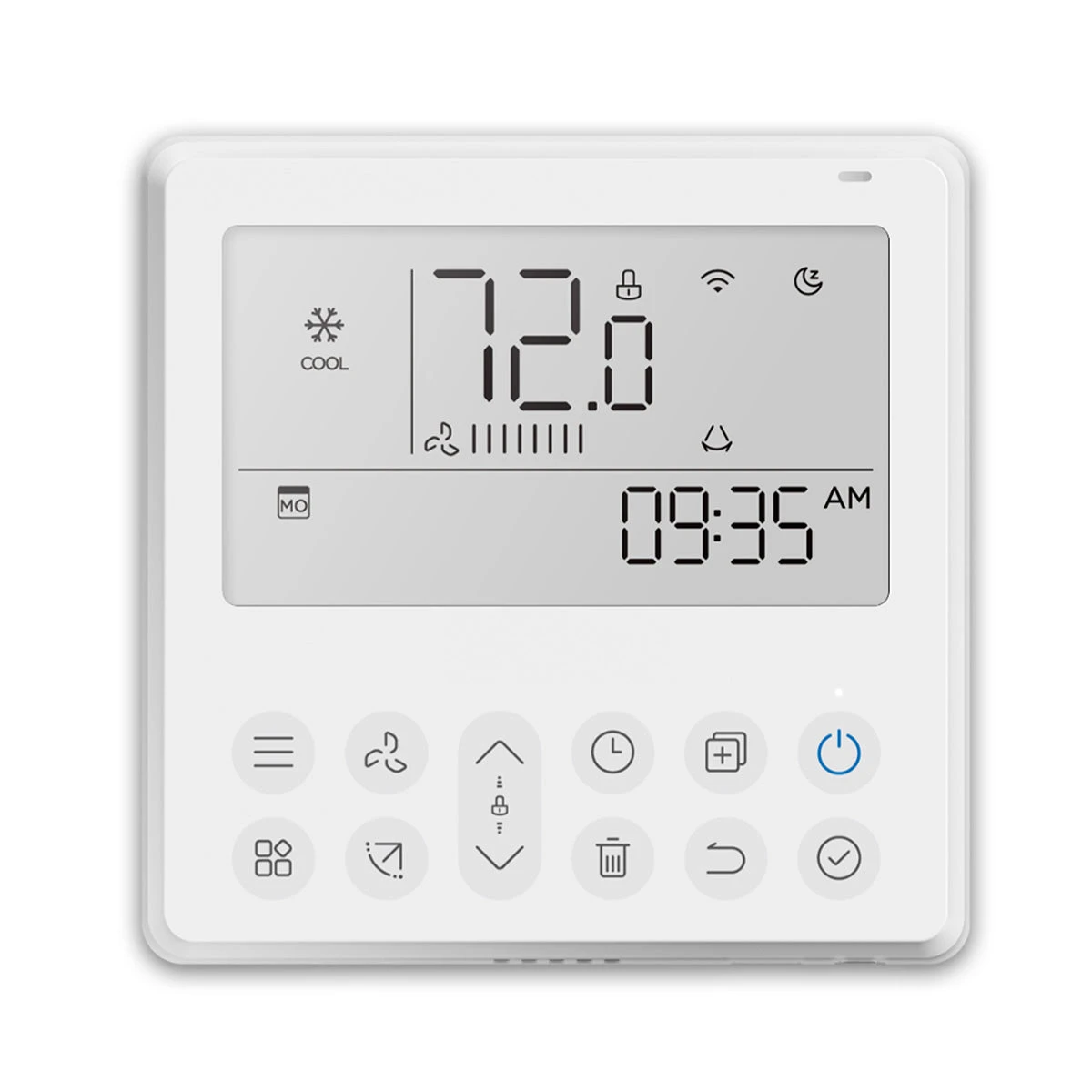

Weekly Programmable Wi-Fi Thermostat For Pioneer RB, UB, CB Model Mini Split Systems

Summary

• Digital LCD Screen Wired Remote Thermostat.
• Brand new interface, with smooth touch-enabled buttons, and a sleeker and more attractive design.

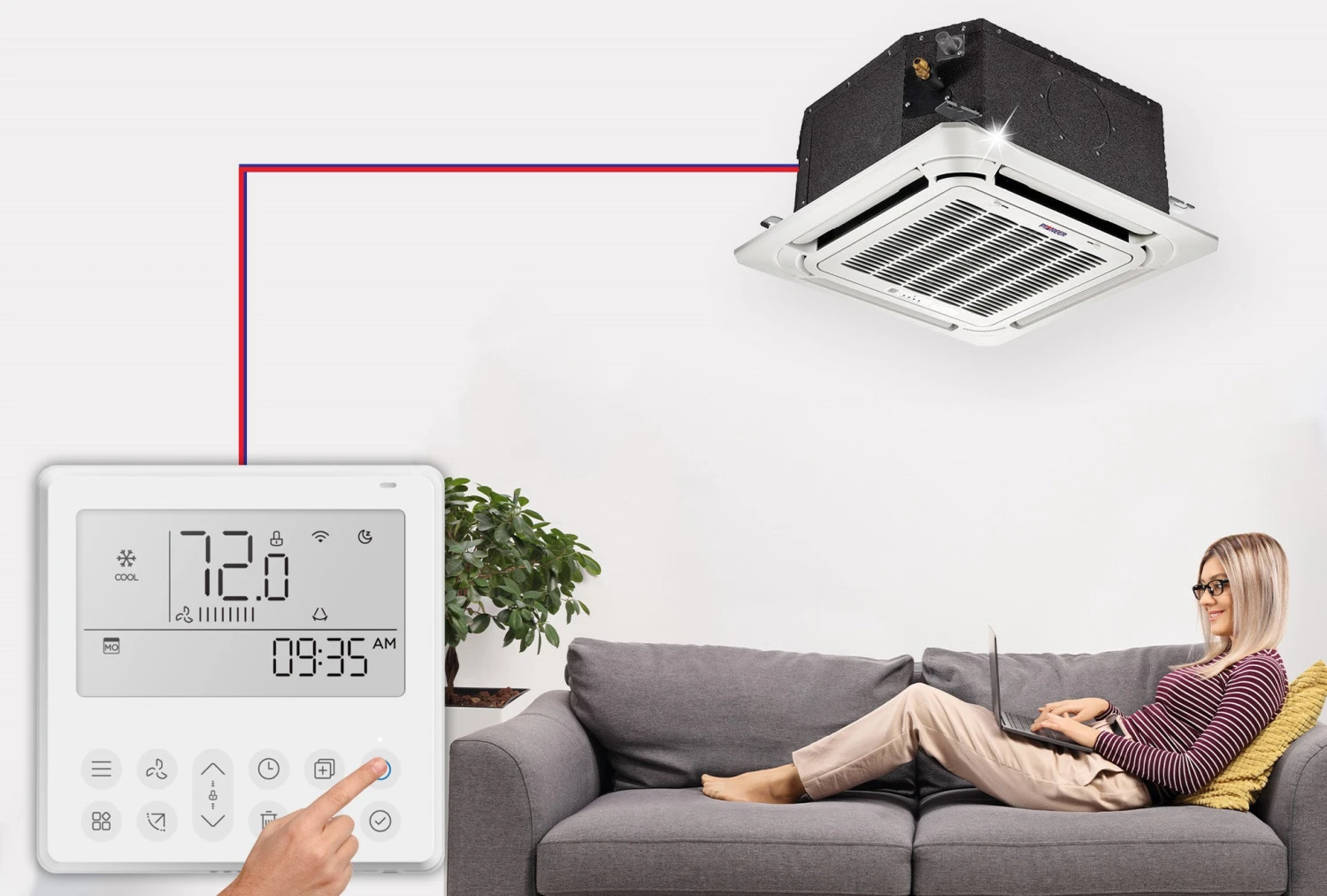

• Compatible with RB (not ending in CFHD), CB, UB Fan Coil Units and RYB (non-CFHD), UYB, CYB series split systems.
• Infrared receiver in the thermostat enables direct communication with remote controllers and other smart controllers.

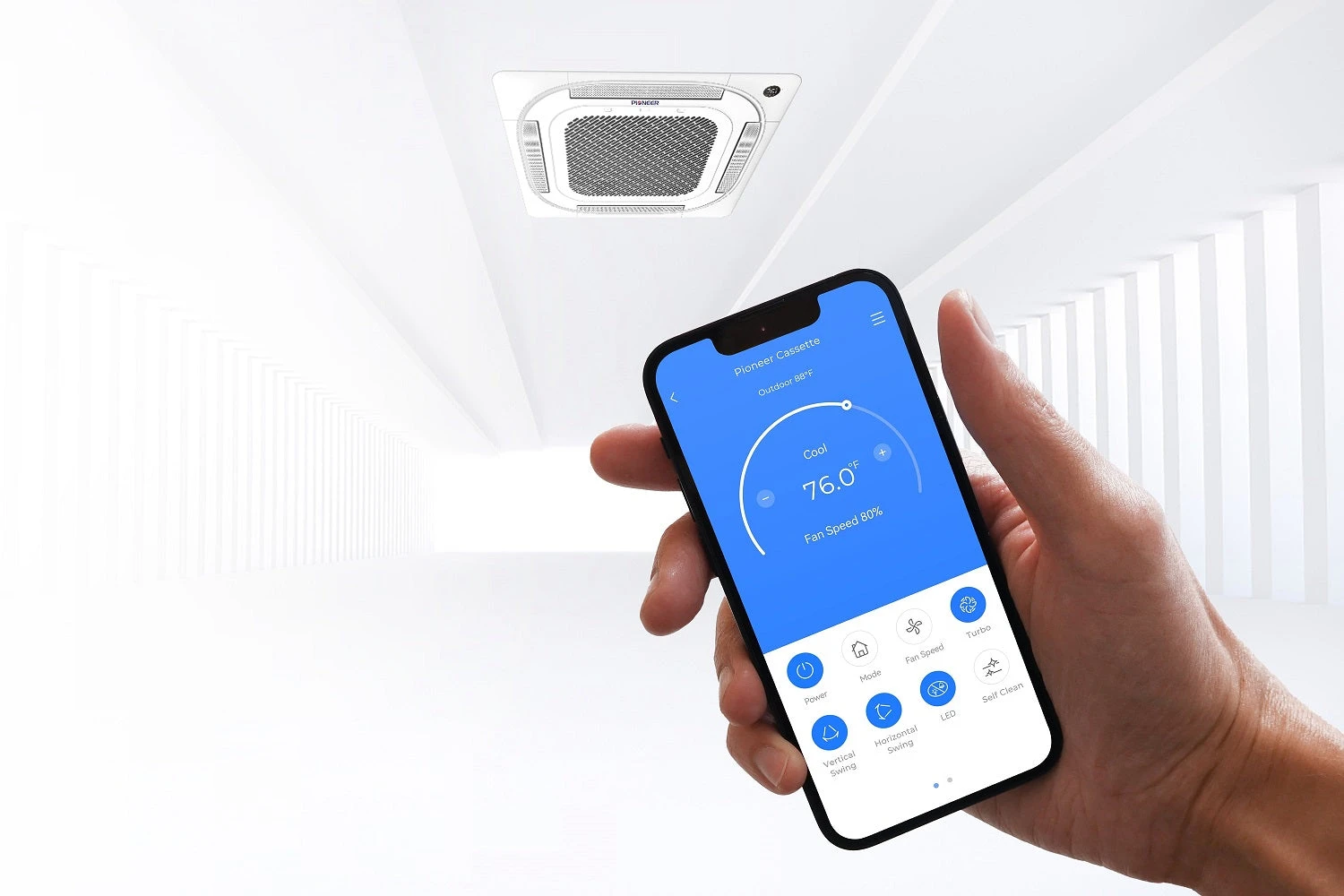

• Wi-Fi enabled to be controlled by smartphone via free app.
• Weekly programming options.
• Highly versatile and flexible.

Features

• 4.3 In. LCD display w/ backlight.
• Malfunction code display: it can display the error code, helpful for service.
• 4-way wire layout design, no raised part at backside, more convenient to place the wires and install the device.
• Room temperature display.
• Weekly timer.

Function:

Mode: choose Auto-Cool-Dry-Heat-Fan Fan speed: Auto/Low/Med/High speed Swing (on some models) Timer ON/OFF Temp setting Weekly timer Follow me Turbo 24-hour System

12-hour System Auto-restart Individual louver control (on some models) Automatic airflow test Child Lock LCD display Clock Panel function (on some models)

Specification

• Input voltage: DC 5V/12V
• Ambient temperature: -5~43°C (23~110°F)

Manuals & Downloads

• Owner’s Manual
