Summary
- Standard Efficiency Vertex Ducted Central Split Heat Pump System
- Cooling capacity: 47,500 BTU/H with 17.5 SEER2 / 11.3 EER2 efficiency
- Heating capacity: 48,000 BTU/H with 9.0 HSPF2 / 2.1 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- High Wall-Mounted Ductless Air Conditioning & Heating System
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454b Refrigerant
- Standard Ambient Range Operation (As low as –4°F in Heating / As high as 131°F in Cooling)
Features
- Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
- Dual-Drainage Ports
- Washable, Reusable Air Filters
- Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers
- Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- IFEEL, to Detect and Adjust to Local Temperature
Technical Information & Performance
- AHRI Certificate
- Energy Guide
- System Kit
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 47,500 BTU/h
- Cooling Capacity Range: 32,900~57,300 BTU/h
- Cooling SEER2: 17.5 BTU/W.h
- Cooling EER2: 11.3 BTU/W.h
- Heating Rated Capacity: 48,000 BTU/h
- Heating Capacity Range: 15,200~65,500 BTU/h
- Heating HSPF2 (Region IV): 9.0 BTU/W.h
- Heating C.O.P.2 (5°F): 2.1 W/W
- Refrigerant Type: R454b
- AHRI Reference: 217048499

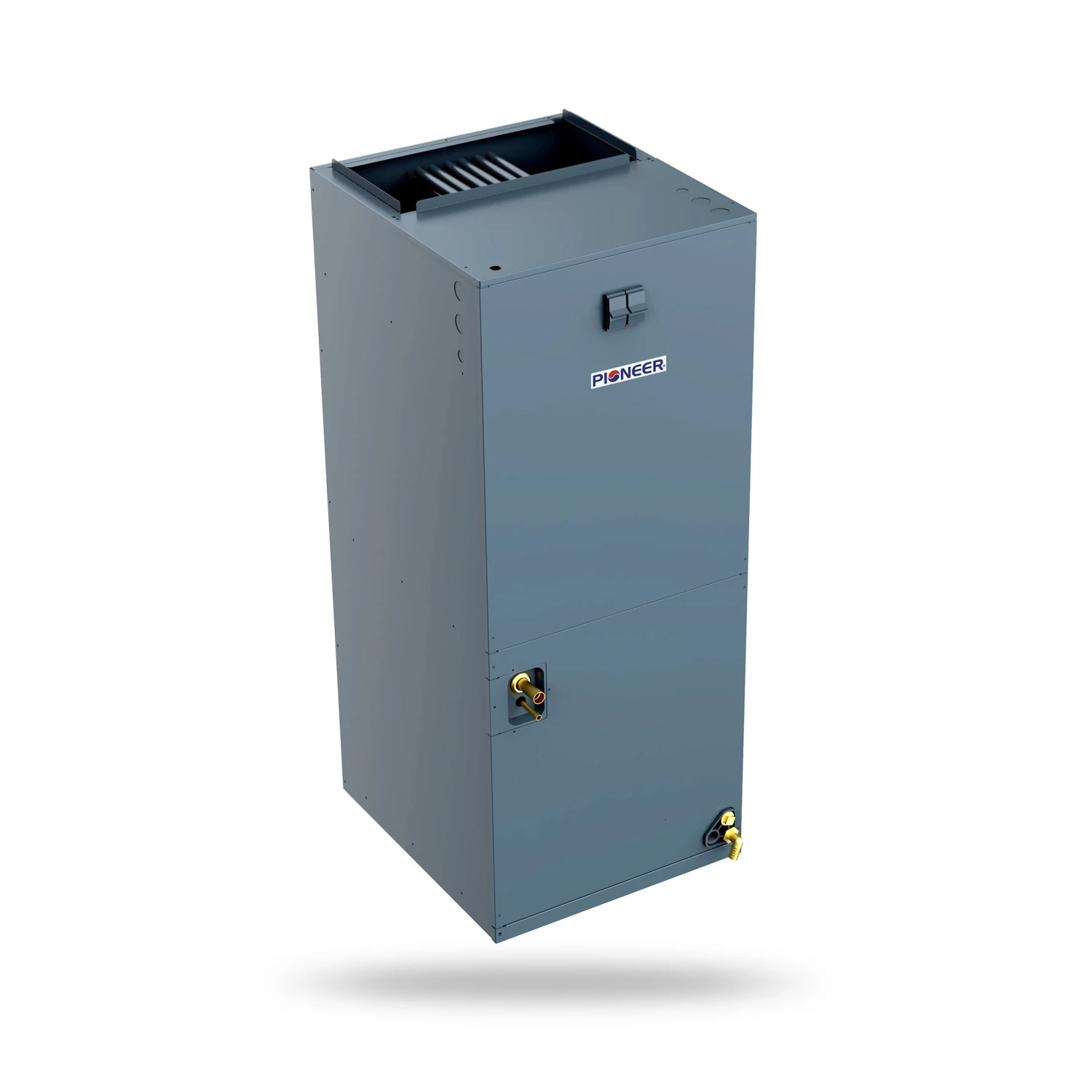

- Air Handler
- Part Number: DC048GCSICDHRT
- Air Flow (Hi/Lo): 1,500 / 1,205 CFM
- Sound Level (Hi/Lo): 59 / 55 dB(A)
- Product Dimensions (WDH): 22″ x 24″-1/2 x 53″-1/8 Inches
- Carton Dimensions (WDH): 25″-1/4 x 28″ x 54″-3/4 Inches
- Net / Gross Weight: 169 / 182 lbs

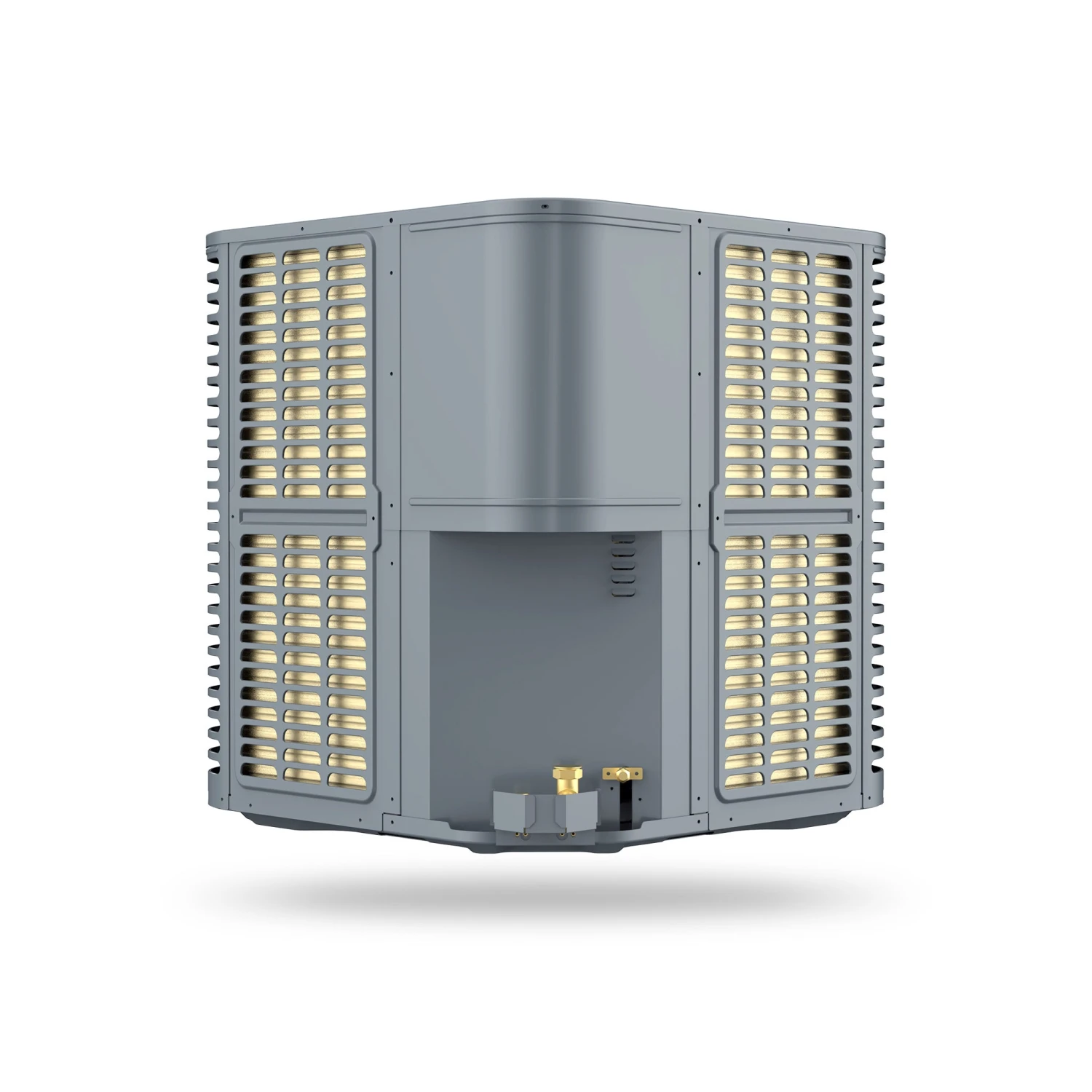

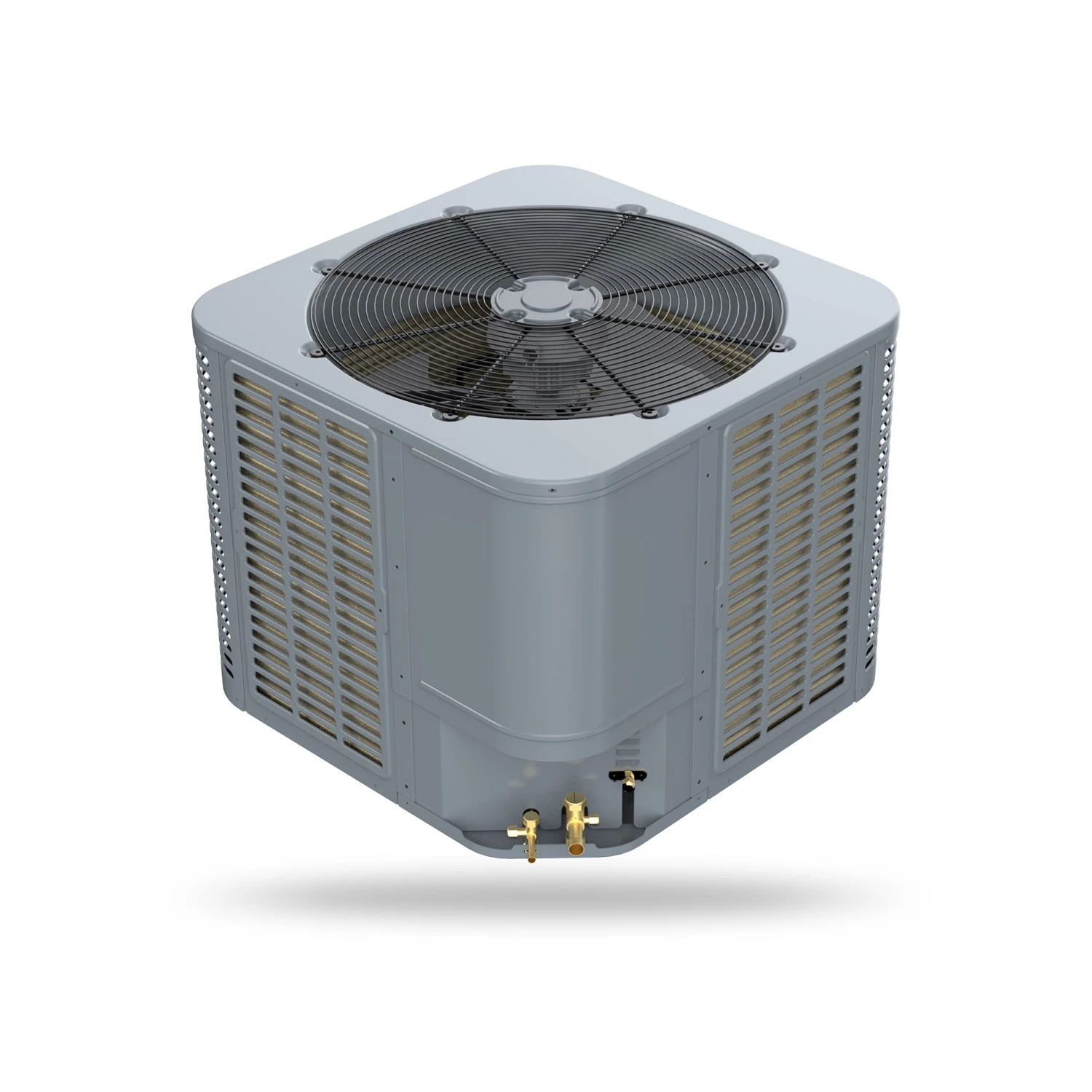

- Outdoor Unit
- Part Number: YD4860GCSI18RD
- Breaker Needed: 25A (double-pole)
- Sound Level: 76 dB(A)
- Net Dimensions (WDH): 29″-1/8 x 29″-1/8 x 32″ Inches
- Carton Dimensions (WDH): 30″ x 30″ x 34″-1/2 Inches
- Net / Gross Weight: 187 / 196 lbs
Dimension Chart
W
D
H
W
D
H
W
D
H
