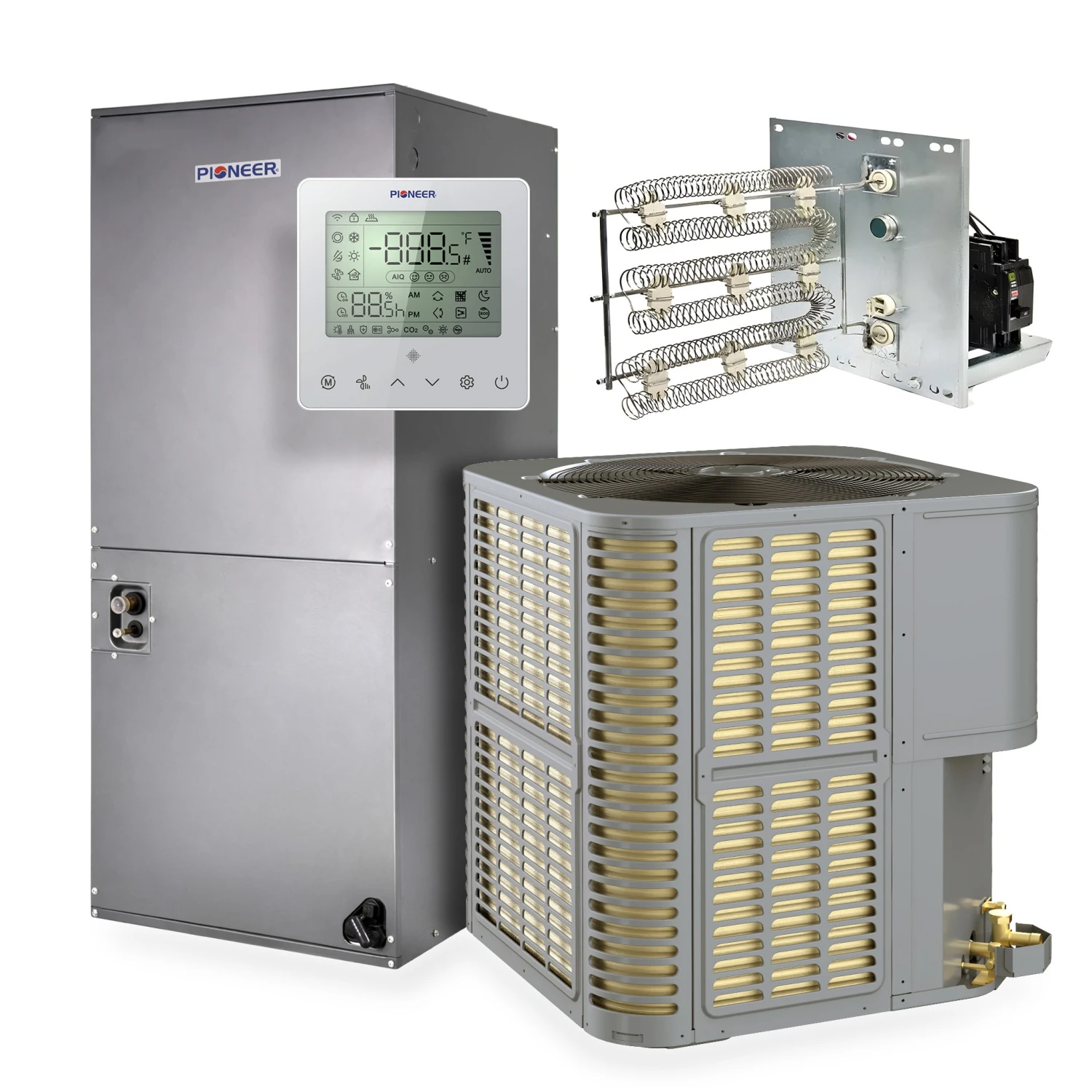

Pioneer® Vertex™ 24,000 BTU 20 SEER2 230V Ducted Central Split Air Conditioner Inverter Heat Pump
Original price was: $370.00.$98.99Current price is: $98.99.
- Get Quality, Get More
- Safe and Secure Payments, Always
- Your satisfaction is 100% guaranteed.
- High quality products, hassle-free returns.
Summary
- Standard Efficiency Vertex Ducted Central Split Heat Pump System
- Cooling capacity: 24,000 BTU/H with 20.0 SEER2 / 13.3 EER2 efficiency
- Heating capacity: 24,000 BTU/H with 9.4 HSPF2 / 2.1 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- High Wall-Mounted Ductless Air Conditioning & Heating System
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454b Refrigerant
- Standard Ambient Range Operation (As low as -4°F in Heating / As high as 131°F in Cooling)
Features
- Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
- Dual-Drainage Ports
- Washable, Reusable Air Filters
- Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers
- Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- IFEEL, to Detect and Adjust to Local Temperature
Technical Information & Performance
- AHRI Certificate
- Energy Guide
- System Kit
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 24,000 BTU/h
- Cooling Capacity Range: 13,500~31,400 BTU/h
- Cooling SEER2: 20.0 BTU/W.h
- Cooling EER2: 13.3 BTU/W.h
- Heating Rated Capacity: 24,000 BTU/h
- Heating Capacity Range: 10,200~35,900 BTU/h
- Heating HSPF2 (Region IV): 9.4 BTU/W.h
- Heating C.O.P.2 (5°F): 2.1 W/W
- Refrigerant Type: R454b
- AHRI Reference: 217048497

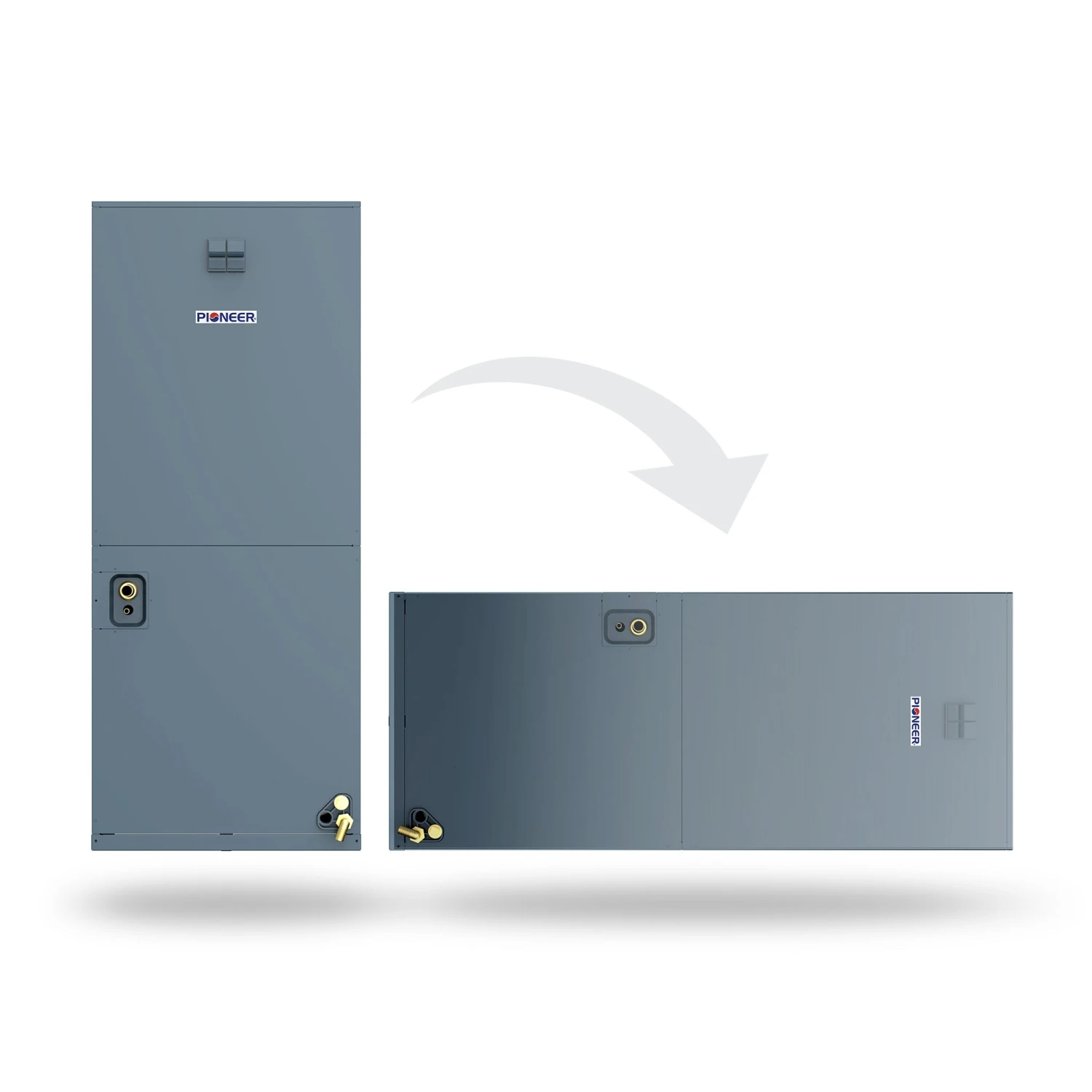

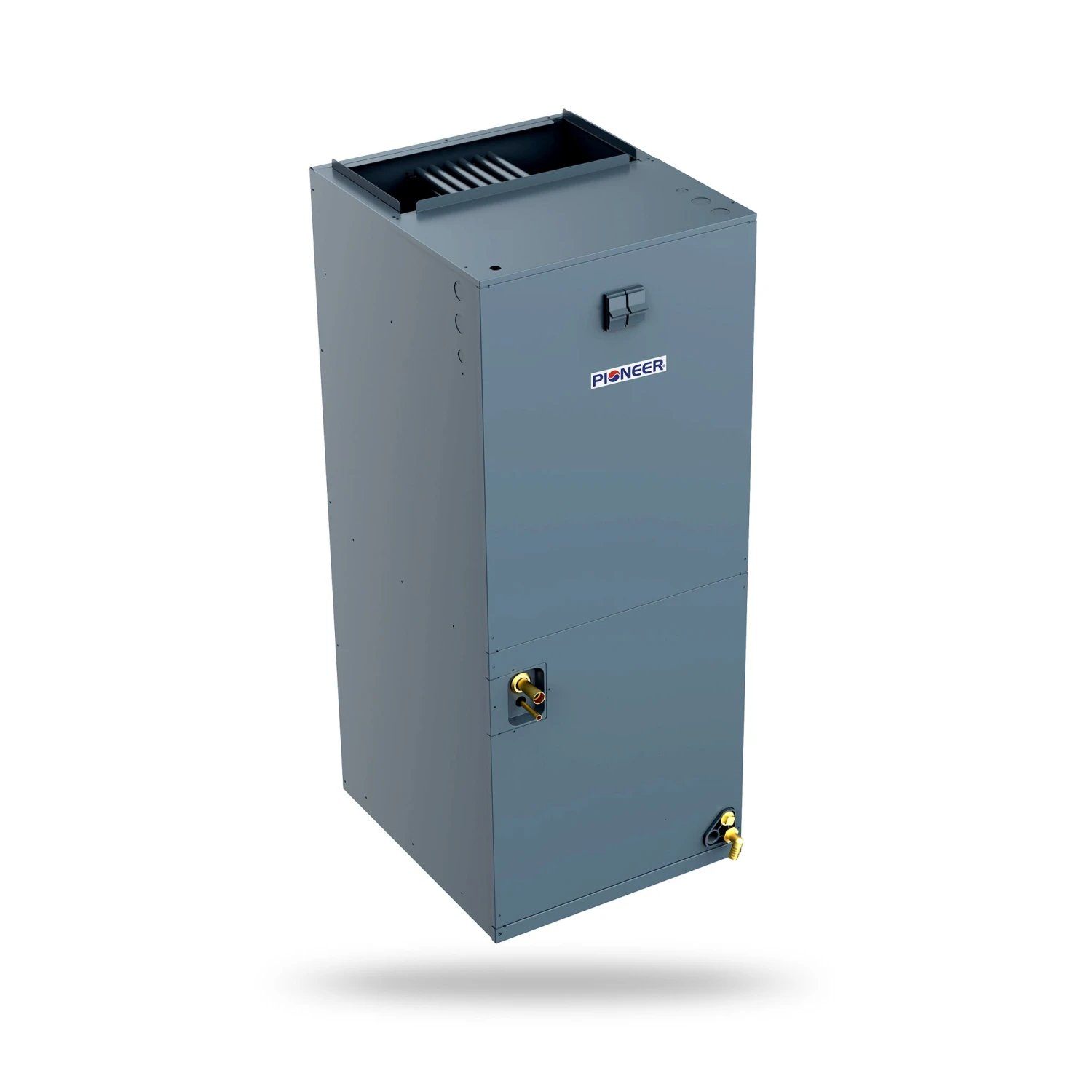

- Air Handler
- Part Number: DC024GCSICDHRT
- Air Flow (Hi/Lo): 690 / 600 CFM
- Sound Level (Hi/Lo): 51 / 48 dB(A)
- Product Dimensions (WDH): 19″-5/8 x 22″ x 45″-3/4 Inches
- Carton Dimensions (WDH): 22″-7/8 x 25″-5/8 x 47″-5/8 Inches
- Net / Gross Weight: 130 / 143 lbs

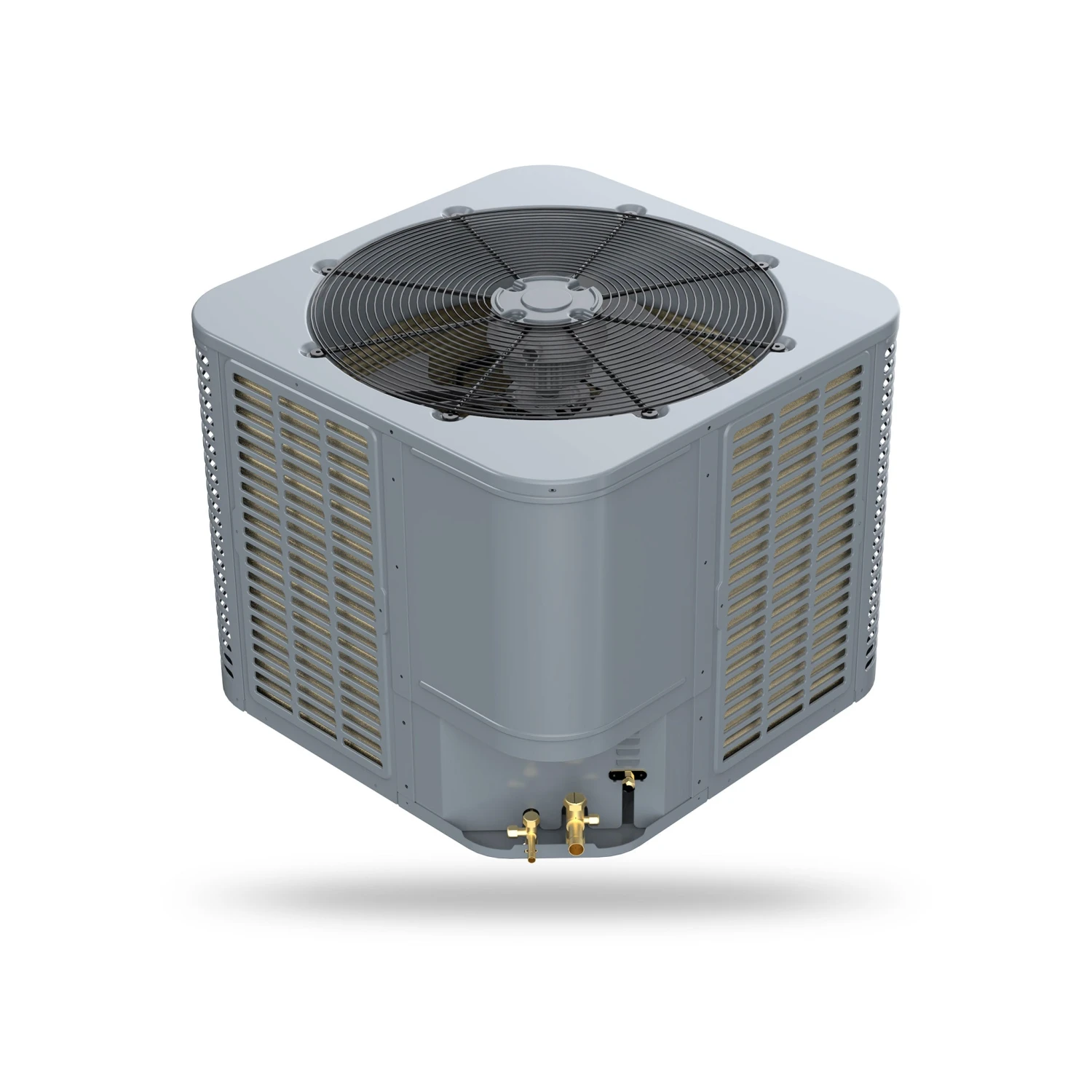

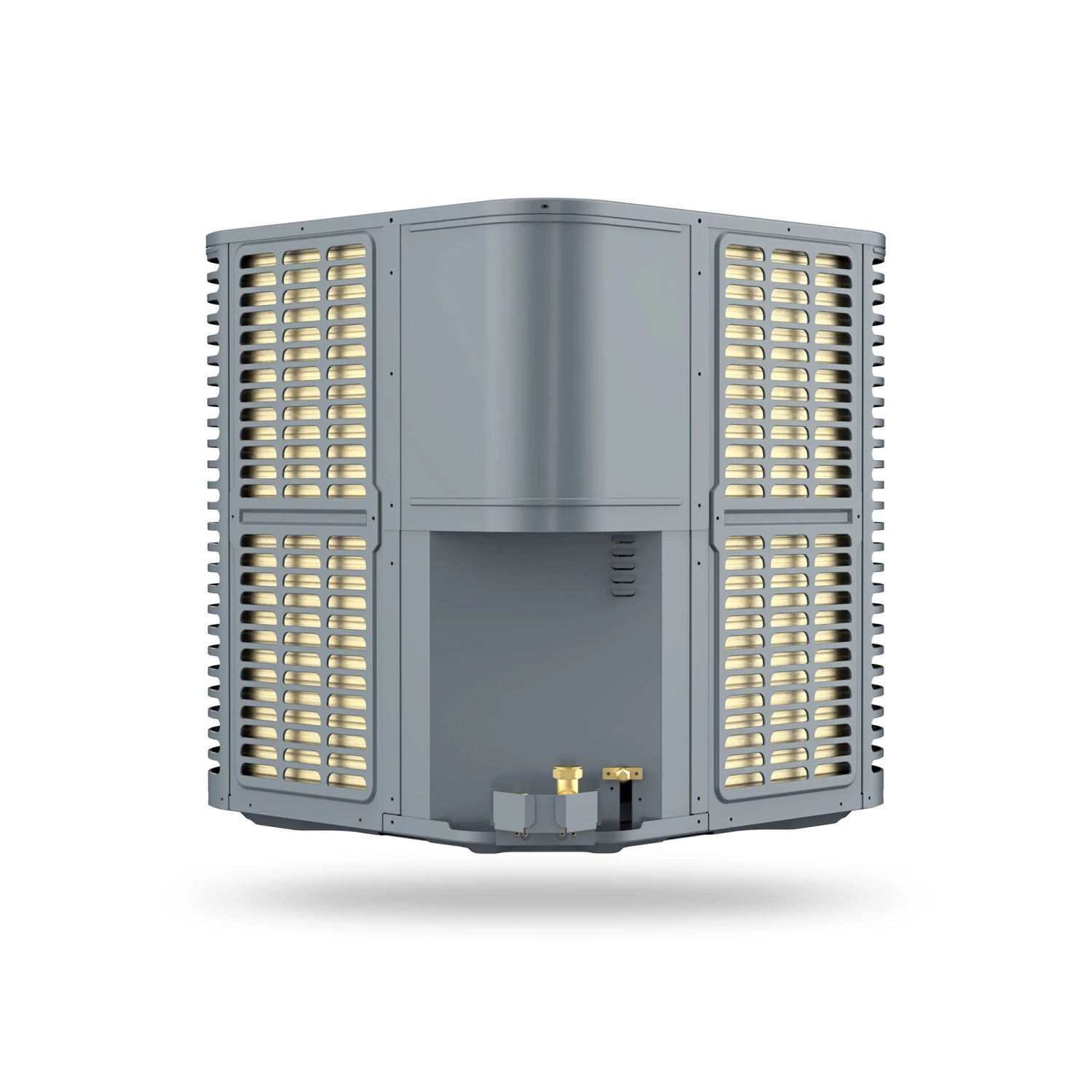

- Outdoor Unit
- Part Number: YD2436GCSI18RD
- Breaker Needed: 15A (double-pole)
- Sound Level: 76 dB(A)
- Net Dimensions (WDH): 29″-1/8 x 25″ x 29″-1/8 Inches
- Carton Dimensions (WDH): 30″ x 26″ x 30″ Inches
- Net / Gross Weight: 137 / 146 lbs
Dimension Chart
W
D
H
W
D
H
W
D
H
