Pioneer® Quantum Ultra™ 18,000 BTU 21 SEER2 230V Ceiling Concealed Ducted Mini-Split Air Conditioner Inverter Heat Pump Full Set

Summary

• High Efficiency Quantum Ultra Ceiling Concealed Ducted Split Heat Pump System
• Cooling capacity: 17,000 BTU/H with 21 SEER2 / 11.7 EER2 efficiency
• Heating capacity: 18,000 BTU/H with 8.1 HSPF2 / 2.9 COP2 efficiency
• Voltage: 208/230V, 60Hz, 1Ph
• Ceiling Concealed Mounted Ducted Air Conditioning & Heating System
• Variable-Speed DC Inverter Driven Performance
• Factory-Precharged with Environmentally Friendly R454b Refrigerant
• Standard Ambient Range Operation (As low as 5°F in Heating / As high as 131°F in Cooling)

Features

• Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
• Dual-Drainage Ports
• Washable, Reusable Air Filters
• Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers

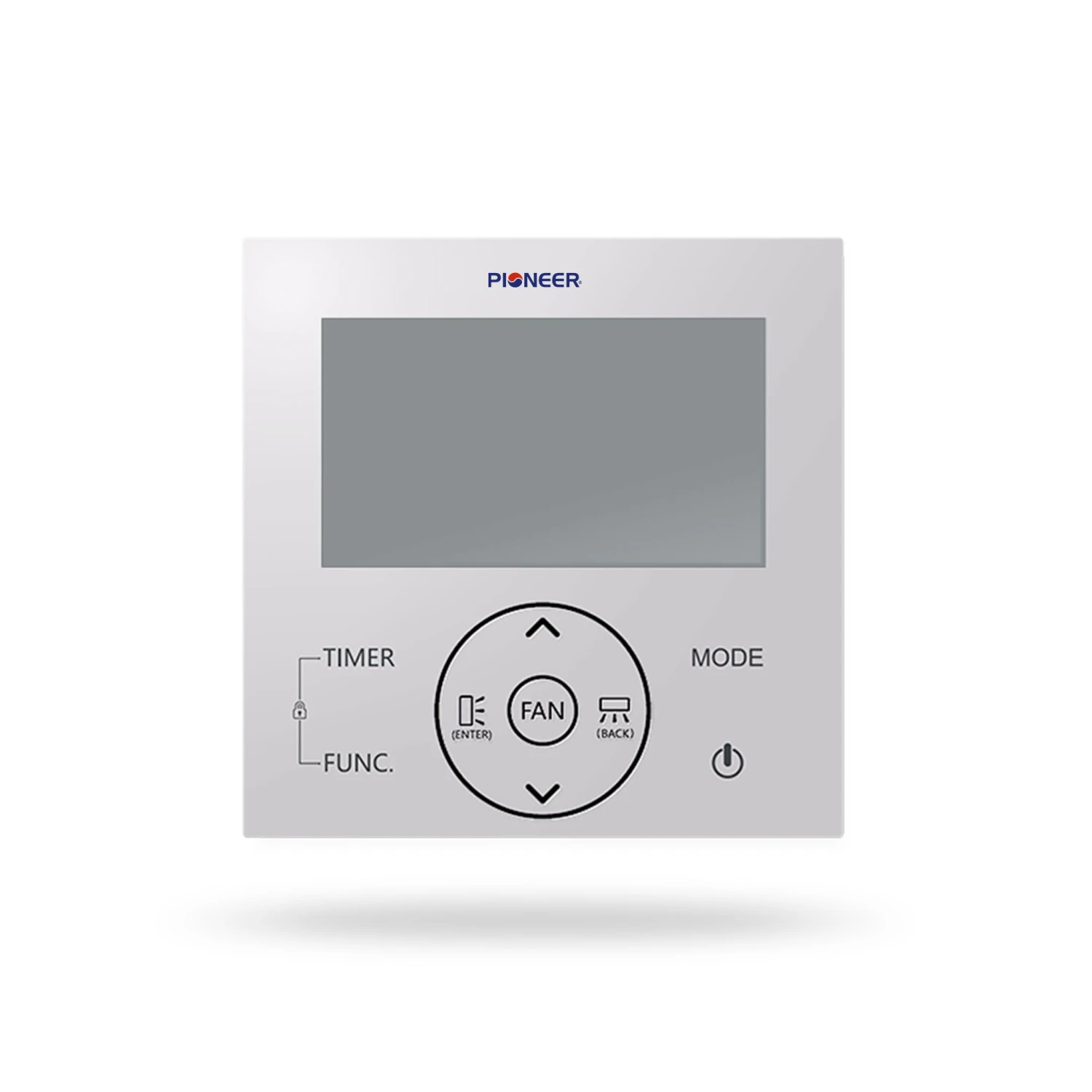

• Functional Remote with:
  • ECO and SLEEP Modes, for Energy-Conservation
  • Timer On/Off Control
  • TURBO, for Times of High-Demand
  • Self-Clean Cycle
  • MEMORY, to Recall Favorite Settings
  • IFEEL, to Detect and Adjust to Local Temperature

Technical Information & Performance

• AHRI Certificate
• Energy Guide

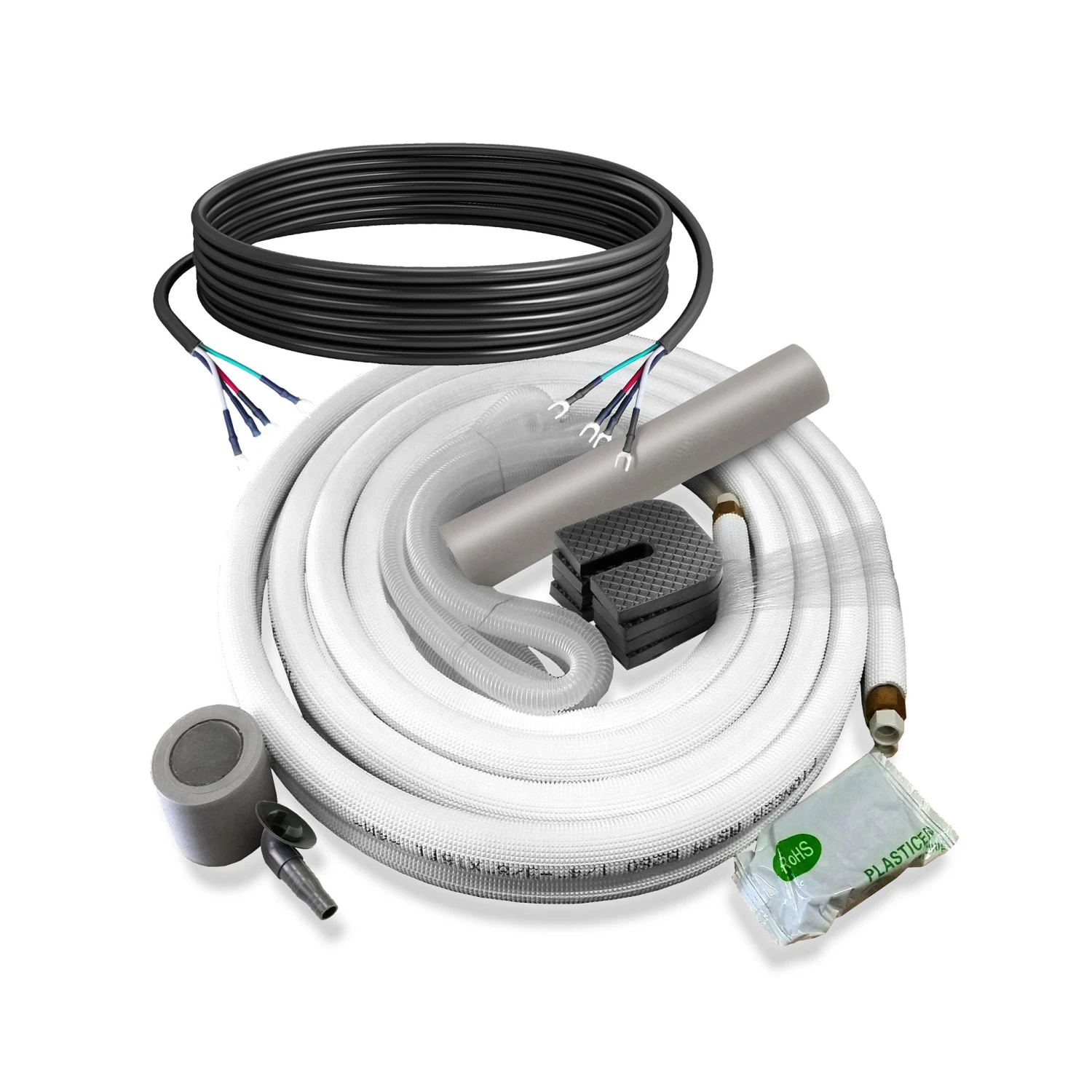

• System Kit
  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 17,000 BTU/h
  • Cooling Capacity Range: 6,000~19,400 BTU/h
  • Cooling SEER2: 21.0 BTU/W.h
  • Cooling EER2: 11.7 BTU/W.h
  • Heating Rated Capacity: 18,000 BTU/h
  • Heating Capacity Range: 4,000~21,400 BTU/h
  • Heating HSPF2 (Region IV): 8.1 / 7.2 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 2.9 / 1.8 W/W
  • Refrigerant Type: R454b
  • Suitable Area: 500~750 Sq.F
  • AHRI Reference: 217048764
• Indoor Unit
  • Part Number: RT018GLSILCFHG
  • Air Flow (Turbo/Hi/Med/Lo/Mute): 500/426/370/300/283 CFM
  • Sound Level (Turbo/Hi/Med/Lo/Mute): 41/38/36 dB(A)
  • Product Dimensions (WDH): 35″-1/2 x 19″-1/4 x 7″-7/8 Inches
  • Carton Dimensions (WDH): 44″-1/8 x 21″-7/8 x 9″-7/8 Inches
  • Net / Gross Weight: 39.7 / 46.3 lbs.

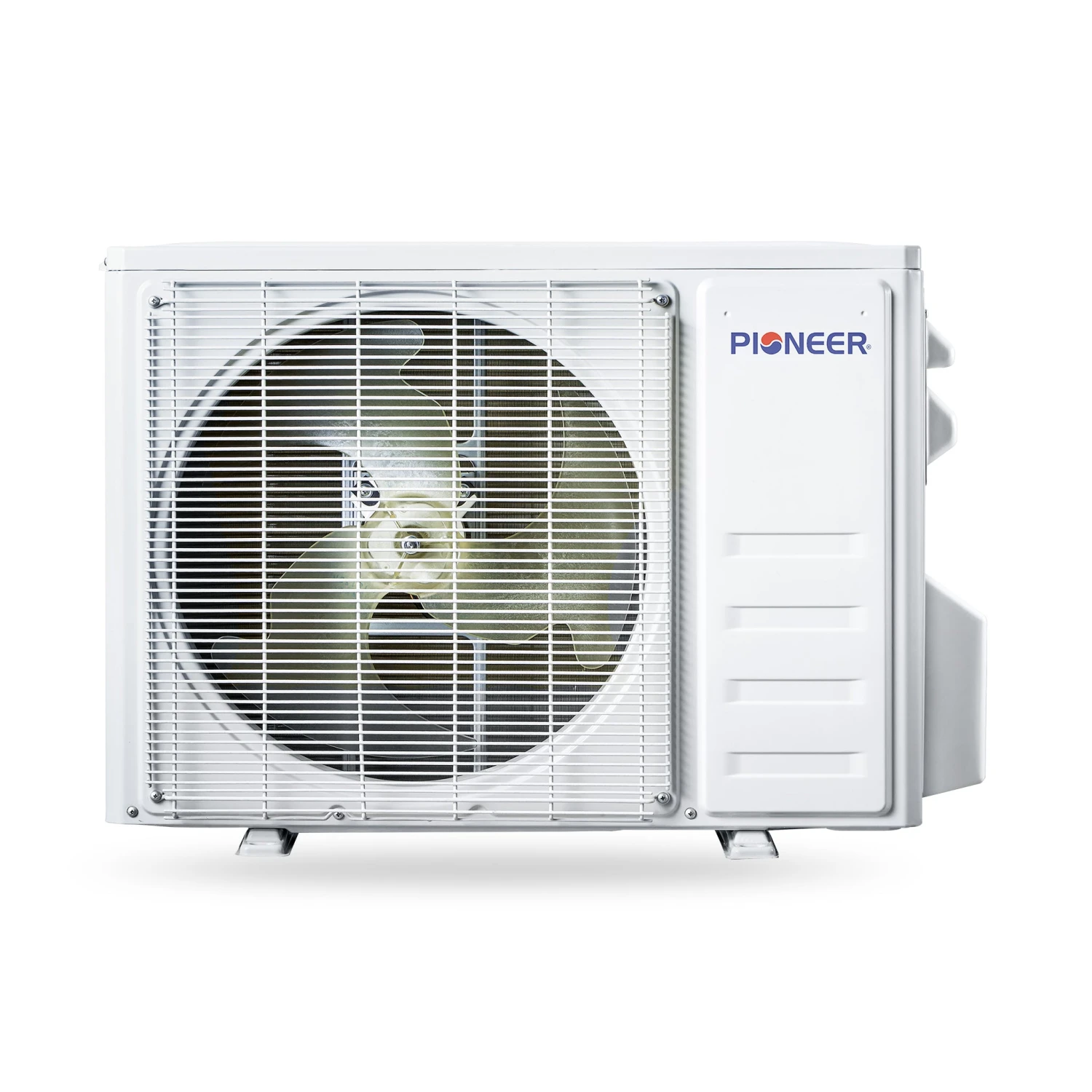

• Outdoor Unit
  • Part Number: YN018GLSI24RPG
  • Breaker Needed: 20A (double-pole)
  • Sound Level: 53 dB(A)
  • Net Dimensions (WDH): 36″-1/2 x 15″ x 27″-1/2 Inches
  • Carton Dimensions (WDH): 37″-3/8 x 16″-1/2 x 28″-7/8 Inches
  • Net / Gross Weight: 90.4 / 97.0 lbs.

Dimension Chart

35½

19¼

7⅞

36½

15

27½

2¼

¾

8½
