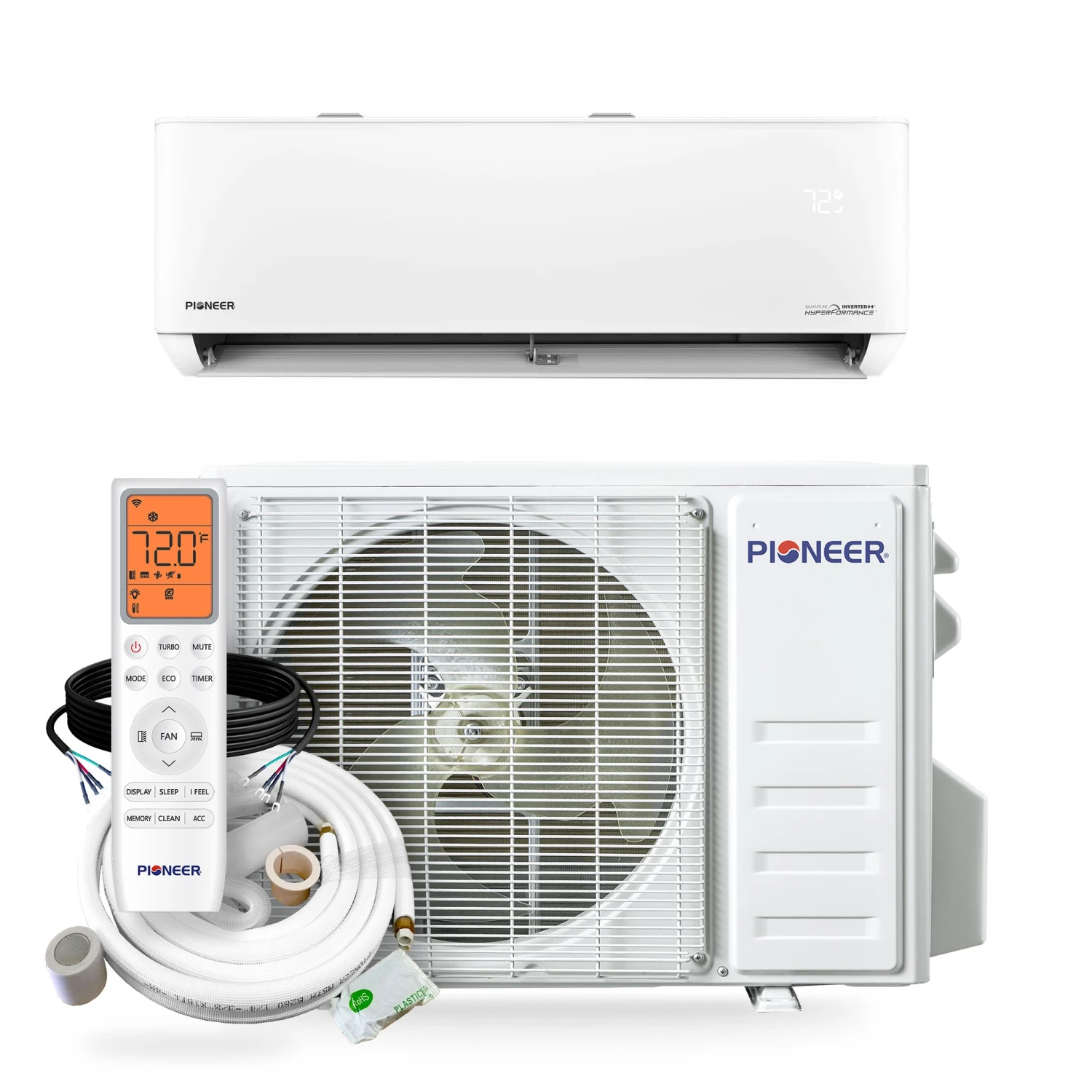

Pioneer® Quantum Hyperformance™ 9,000 BTU 25 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump Full Set

Summary

• High Efficiency Quantum Hyperformance Ductless Mini Split Heat Pump System
• Cooling capacity: 9,000 BTU/H with 25 SEER2 / 14.5 EER2 efficiency
• Heating capacity: 9,500 BTU/H with 10.5 HSPF2 / 4.0 COP2 efficiency
• Voltage: 208/230V, 60Hz, 1Ph
• High Wall-Mounted Ductless Air Conditioning & Heating System
• Variable-Speed DC Inverter Driven Performance
• Factory-Precharged with Environmentally Friendly R454b Refrigerant
• Standard Ambient Range Operation (As low as 5°F in Heating / As high as 131°F in Cooling)

Features

• Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
• Dual-Drainage Ports
• Washable, Reusable Air Filters
• Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers

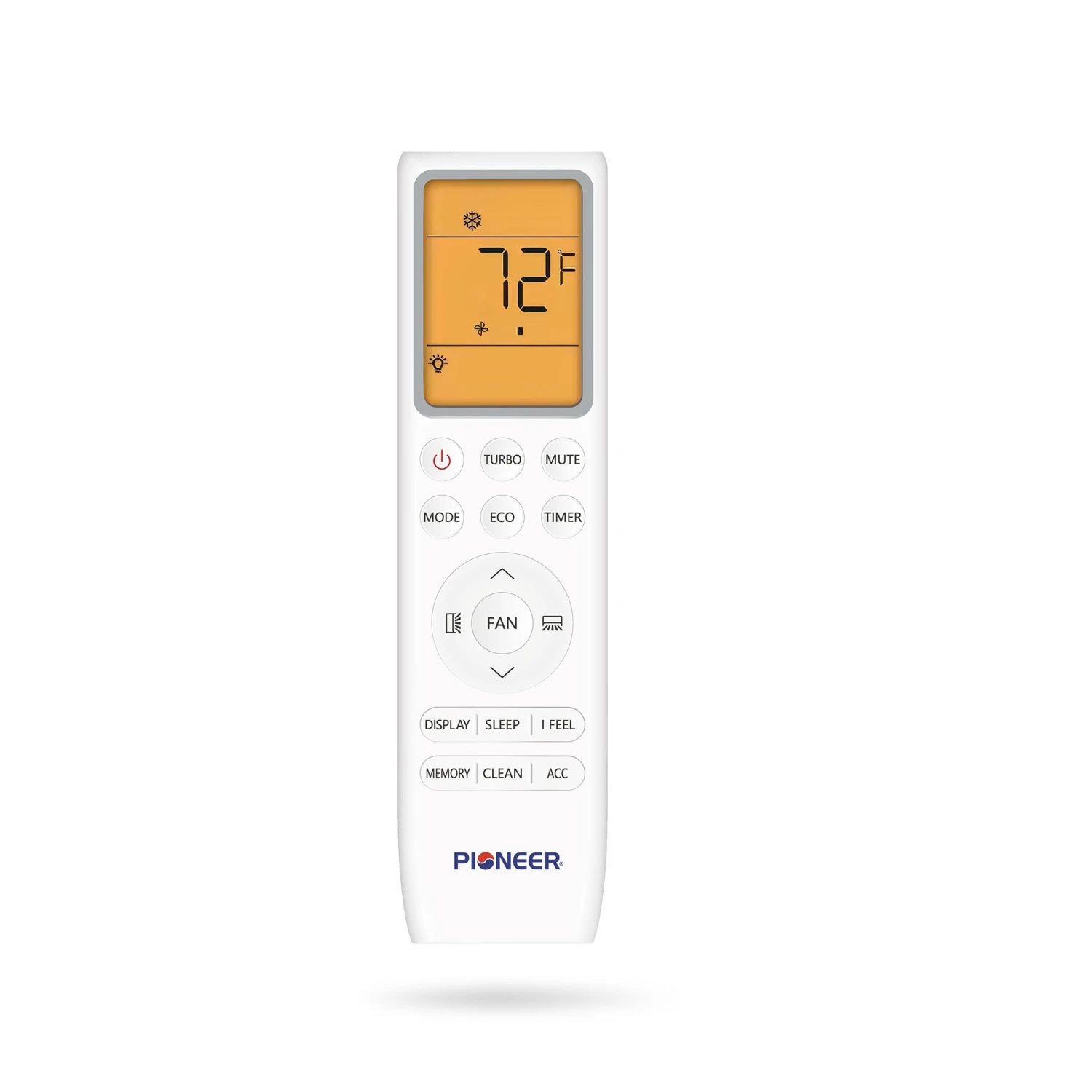

• Functional Remote with:
  • ECO and SLEEP Modes, for Energy-Conservation
  • Timer On/Off Control
  • TURBO, for Times of High-Demand
  • Self-Clean Cycle
  • MEMORY, to Recall Favorite Settings
  • IFEEL, to Detect and Adjust to Local Temperature

Technical Information & Performance

• AHRI Certificate
• Energy Guide

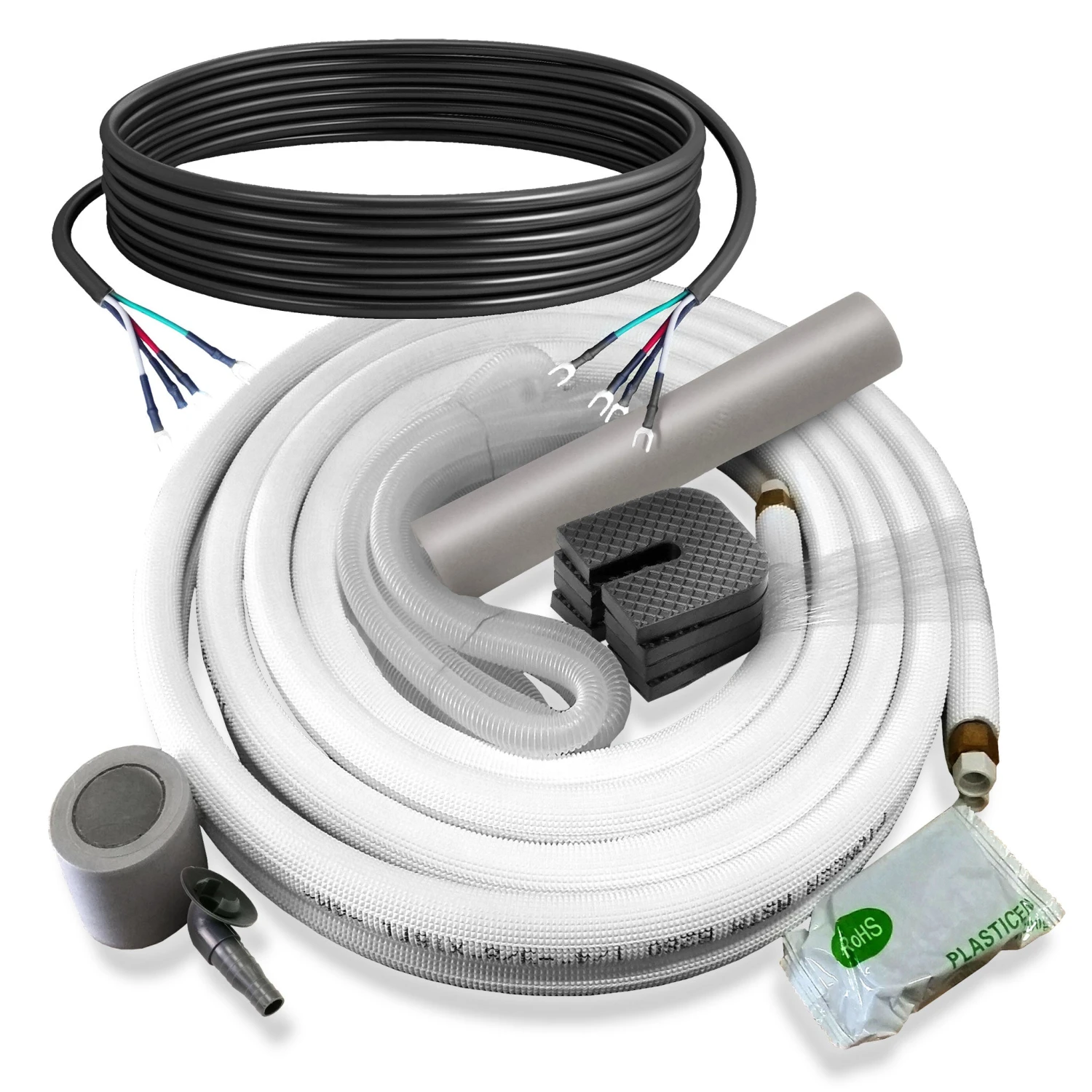

• System Kit
  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 9,000 BTU/h
  • Cooling Capacity Range: 3,200~12,400 BTU/h
  • Cooling SEER2: 25.0 BTU/W.h
  • Cooling EER2: 14.5 BTU/W.h
  • Heating Rated Capacity: 9,500 BTU/h
  • Heating Capacity Range: 2,100~15,100 BTU/h
  • Heating HSPF2 (Region IV): 10.5 / 9.0 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 4.0 / 1.8 W/W
  • Refrigerant Type: R454b
  • Suitable Area: 250~350 Sq. F
  • AHRI Reference: 217048754

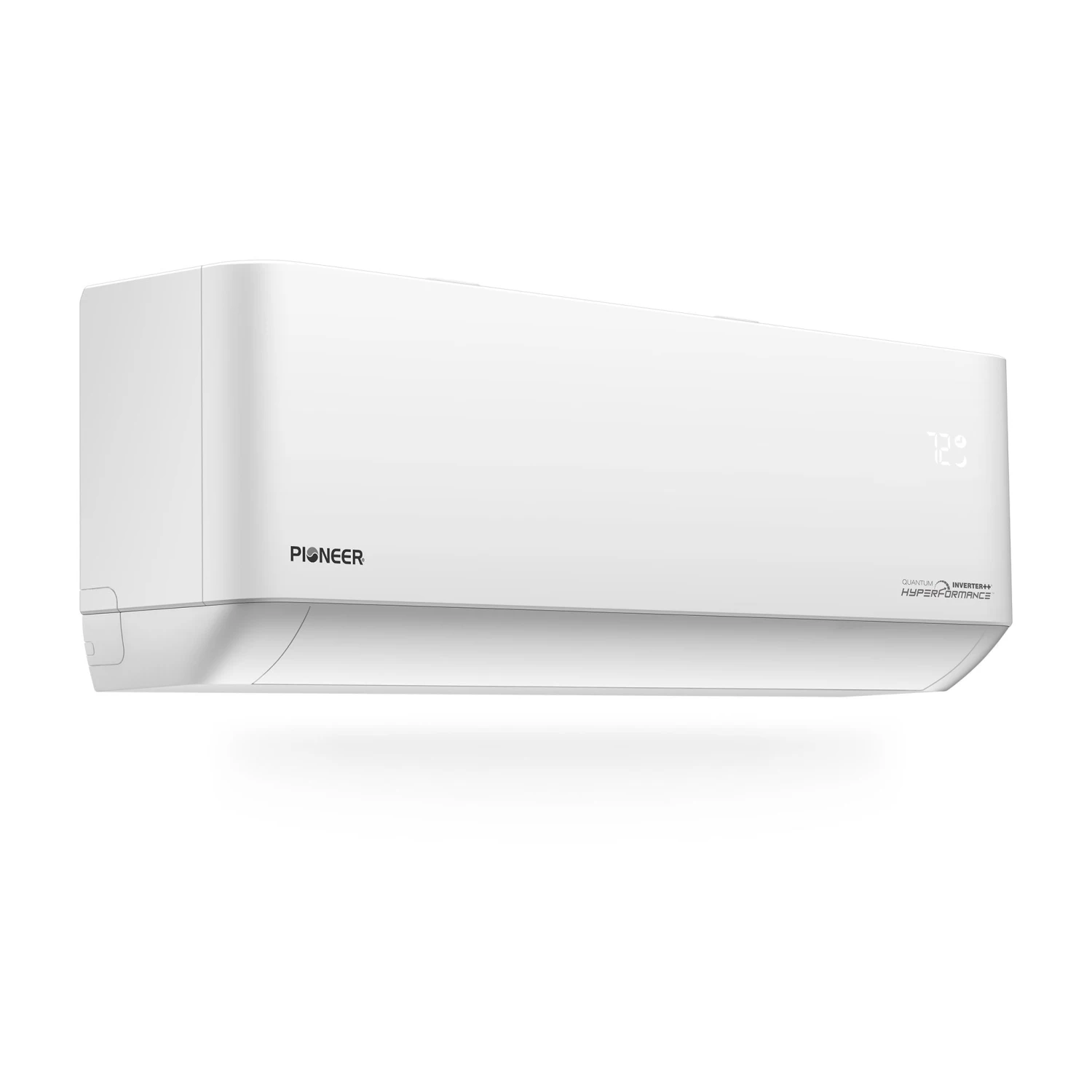

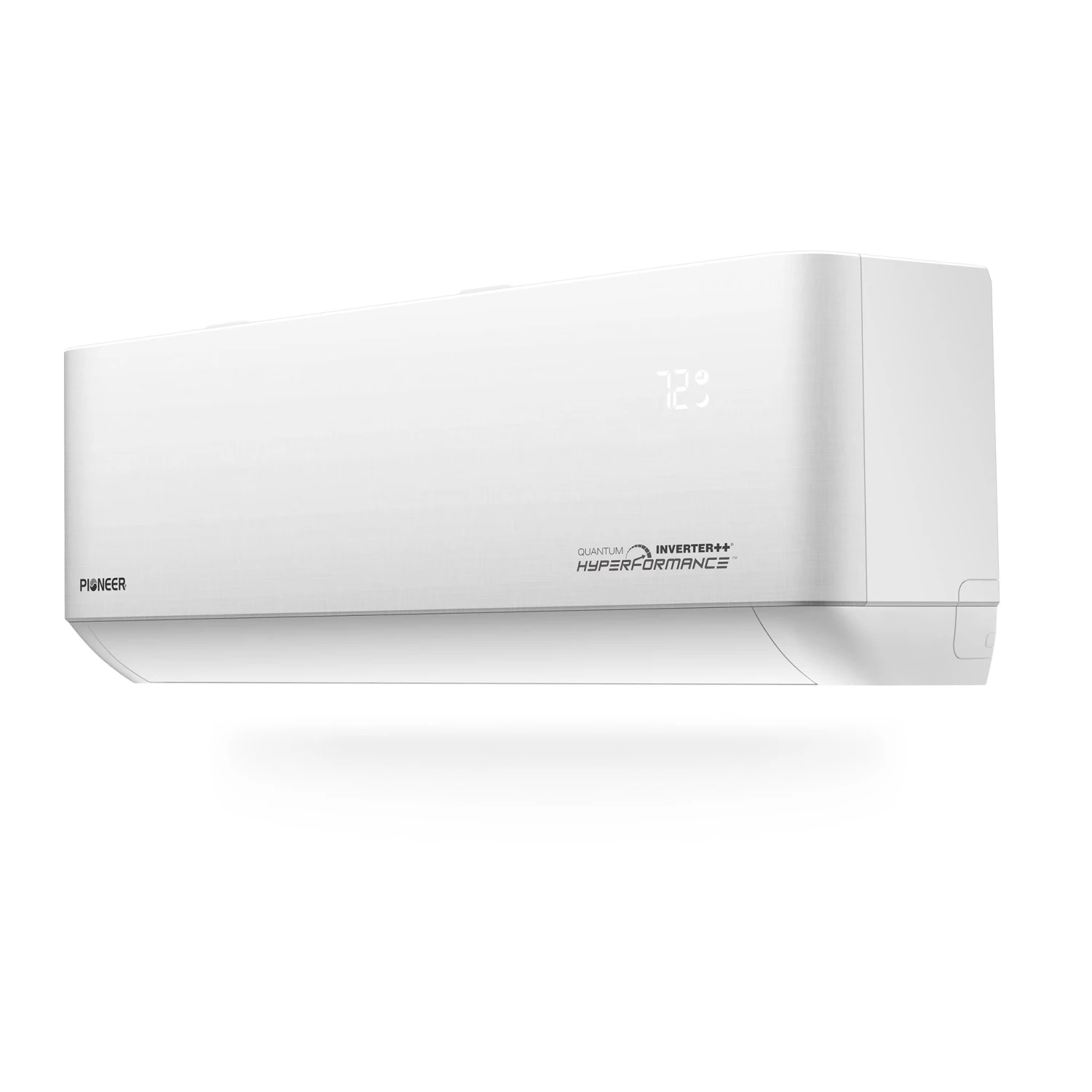

• Indoor Unit
  • Part Number: WT00GALSI25HLH
  • Air Flow (Turbo/Hi/Med/Lo/Mute): 326/282/235/188/153 CFM
  • Sound Level (Turbo/Hi/Med/Lo/Mute): 42/39/33/29/26 dB(A)
  • Product Dimensions (WDH): 32″-1/4 x 7″-5/8 x 12″ Inches
  • Carton Dimensions (WDH): 35″ x 10″-1/2 x 15″ Inches
  • Net / Gross Weight: 20.7 / 25.1 lbs.

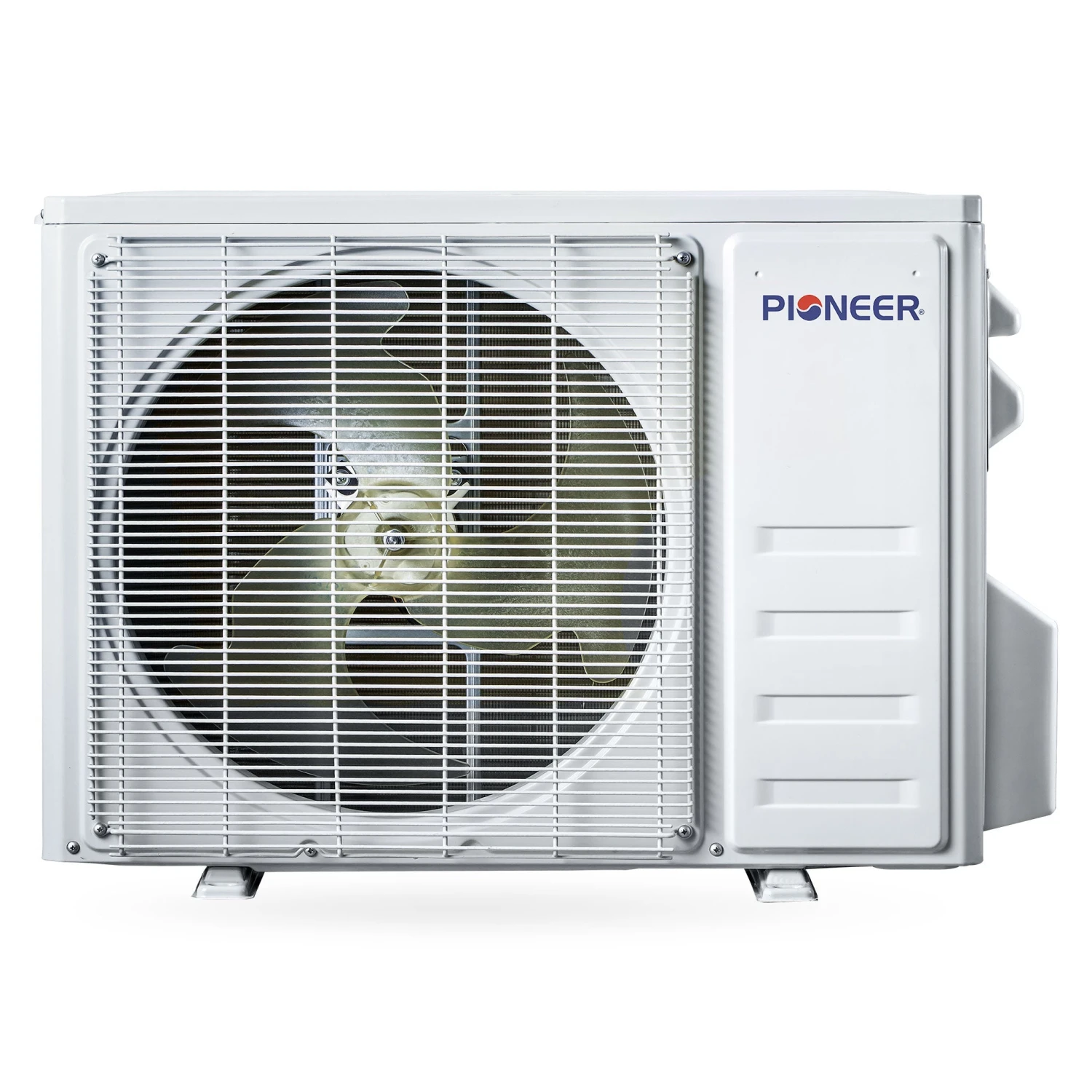

• Outdoor Unit
  • Part Number: YN009GLSI25RPH
  • Breaker Needed: 15A (double-pole)
  • Sound Level: 55 dB(A)
  • Net Dimensions (WDH): 31″-7/8 x 12″ x 21″-5/8 Inches
  • Carton Dimensions (WDH): 32″-7/8 x 13″ x 22″-5/8 Inches
  • Net / Gross Weight: 54.0 / 60.6 lbs.

Dimension Chart

32¼

7⅝

12

31⅞

12

21⅝

2¼

¾

8½
