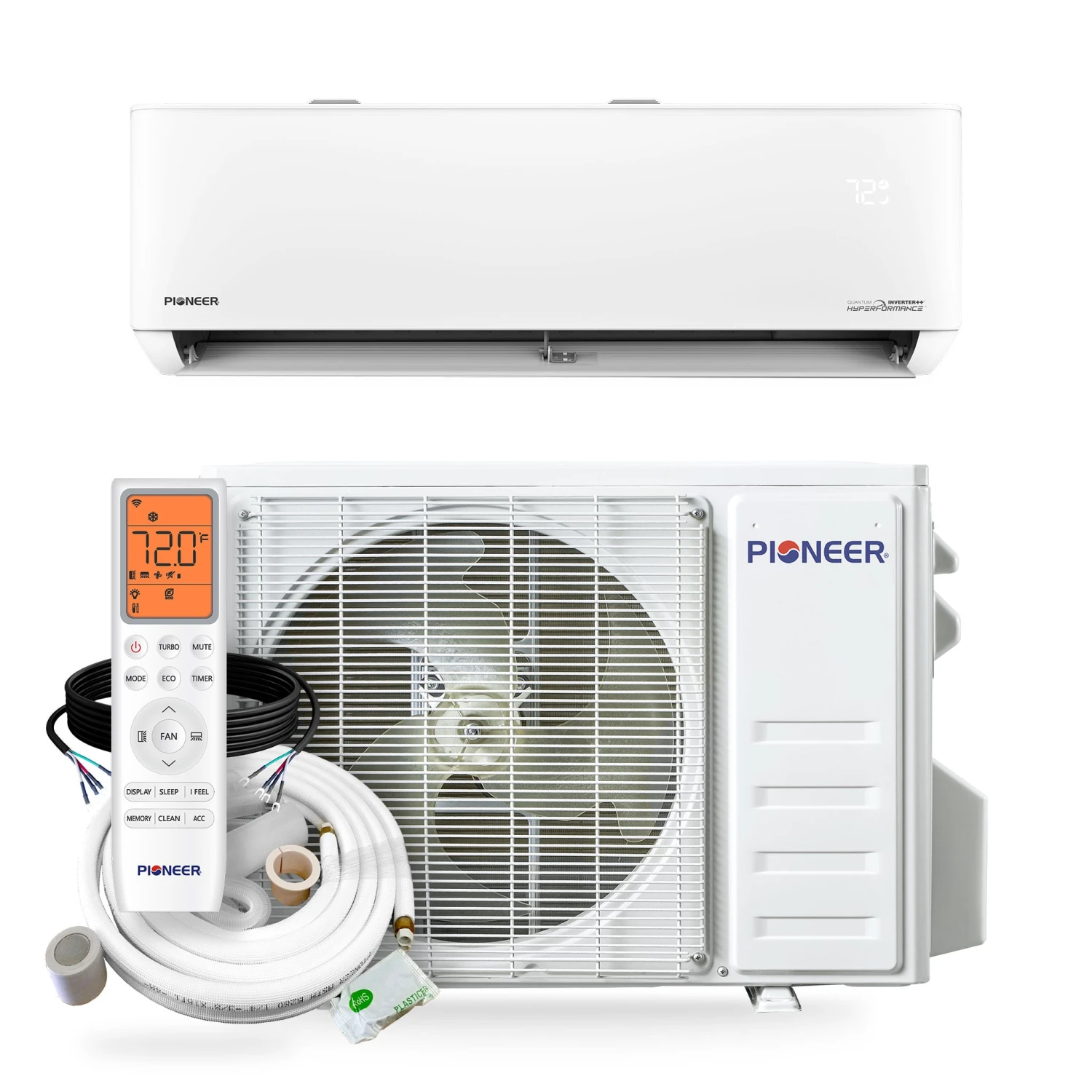

Pioneer® Quantum Hyperformance™ 18,000 BTU 23.5 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump Full Set

Summary

• High Efficiency Quantum Hyperformance Ductless Mini Split Heat Pump System
• Cooling capacity: 18,000 BTU/H with 23.5 SEER2 / 12.5 EER2 efficiency
• Heating capacity: 18,000 BTU/H with 10.0 HSPF2 / 3.8 COP2 efficiency
• Voltage: 208/230V, 60Hz, 1Ph
• High Wall-Mounted Ductless Air Conditioning & Heating System
• Variable-Speed DC Inverter Driven Performance
• Factory-Precharged with Environmentally Friendly R454b Refrigerant
• Standard Ambient Range Operation (As low as 5°F in Heating / As high as 131°F in Cooling)

Features

• Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
• Dual-Drainage Ports
• Washable, Reusable Air Filters
• Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers

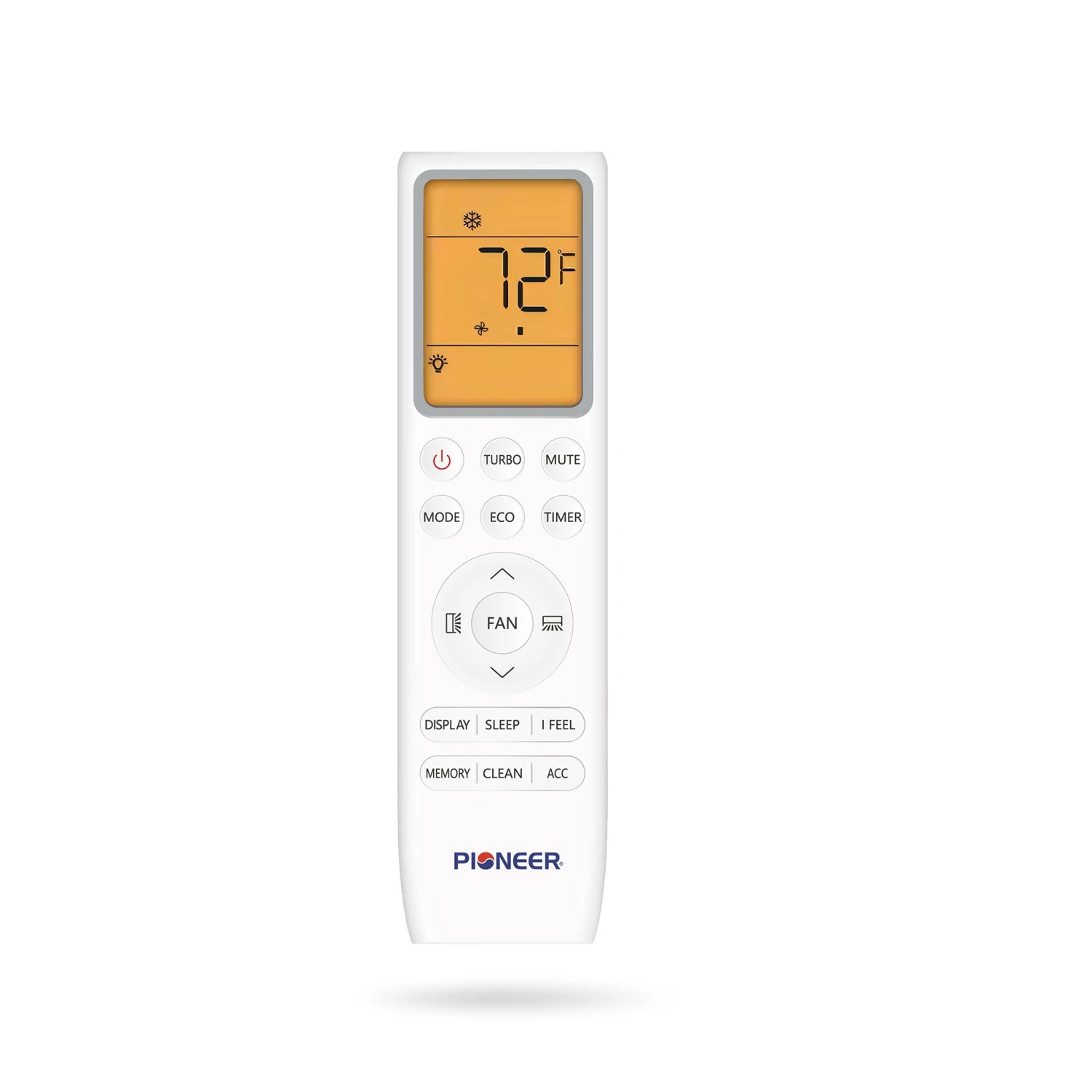

• Functional Remote with:
  • ECO and SLEEP Modes, for Energy-Conservation
  • Timer On/Off Control
  • TURBO, for Times of High-Demand
  • Self-Clean Cycle
  • MEMORY, to Recall Favorite Settings
  • IFEEL, to Detect and Adjust to Local Temperature

Technical Information & Performance

• AHRI Certificate
• Energy Guide

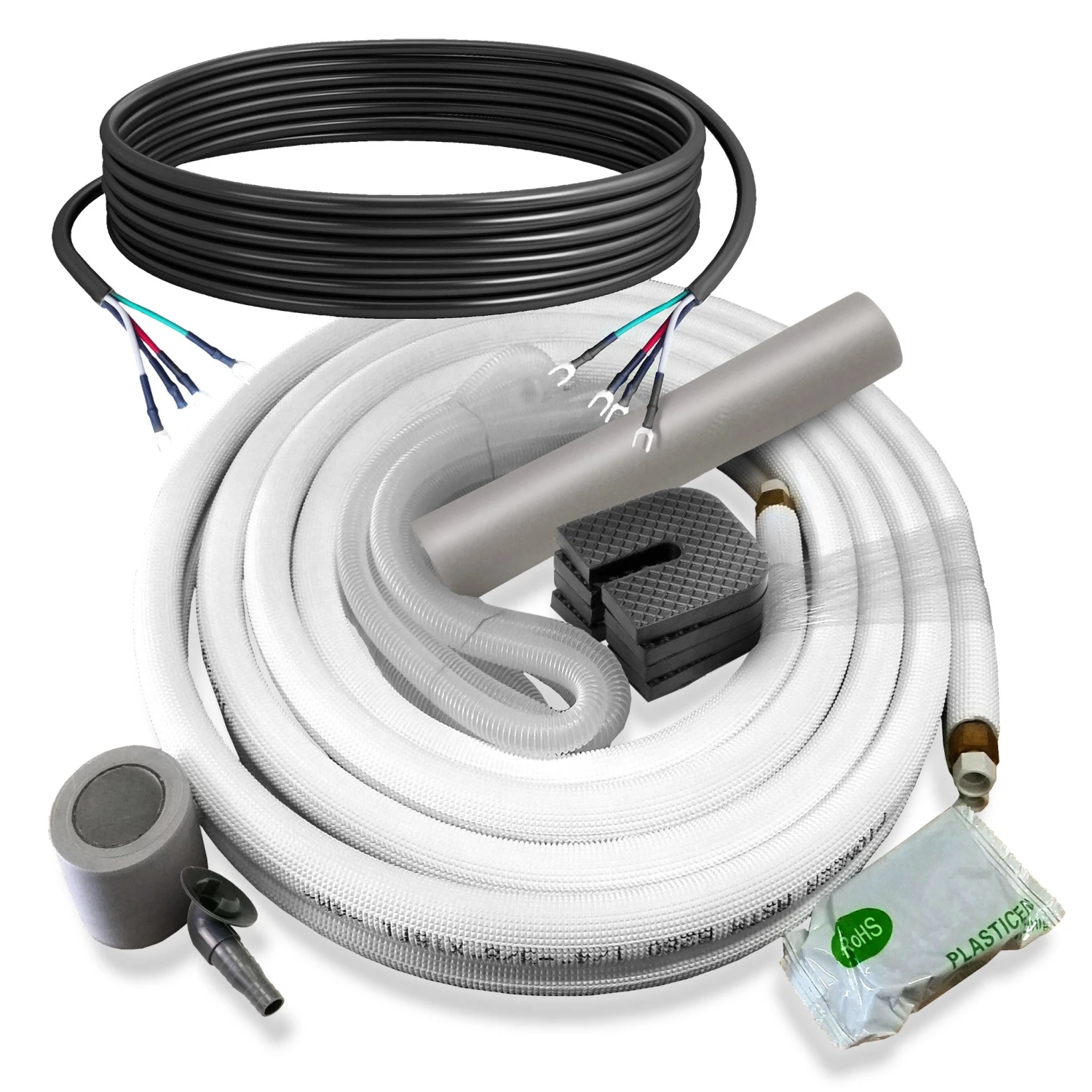

• System Kit
  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 18,000 BTU/h
  • Cooling Capacity Range: 4,100~19,400 BTU/h
  • Cooling SEER2: 23.5 BTU/W.h
  • Cooling EER2: 12.5 BTU/W.h
  • Heating Rated Capacity: 18,000 BTU/h
  • Heating Capacity Range: 4,100~21,400 BTU/h
  • Heating HSPF2 (Region IV): 10.0 / 9.0 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 3.8 / 1.8 W/W
  • Refrigerant Type: R454b
  • Suitable Area: 500~750 Sq.F
  • AHRI Reference: 217048756

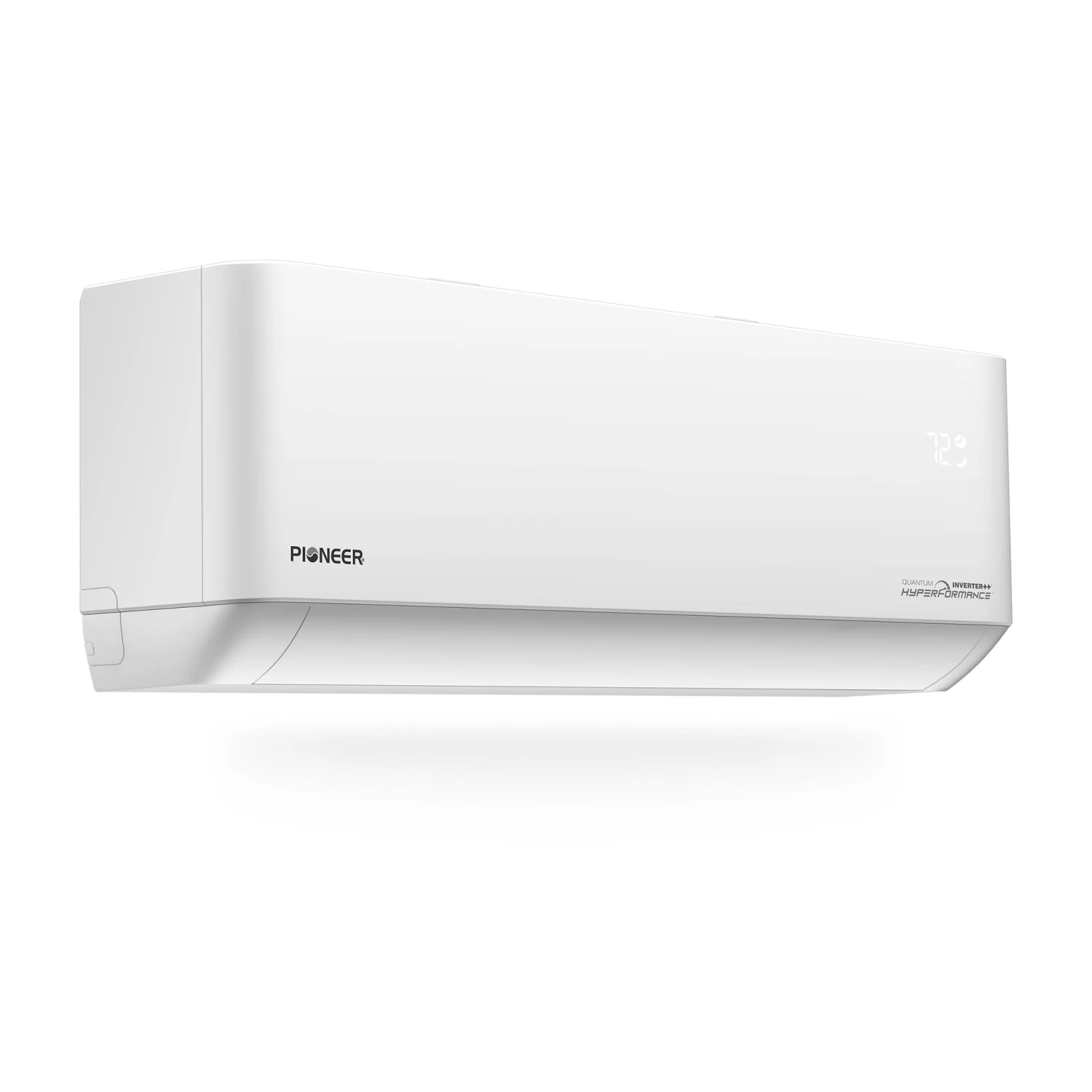

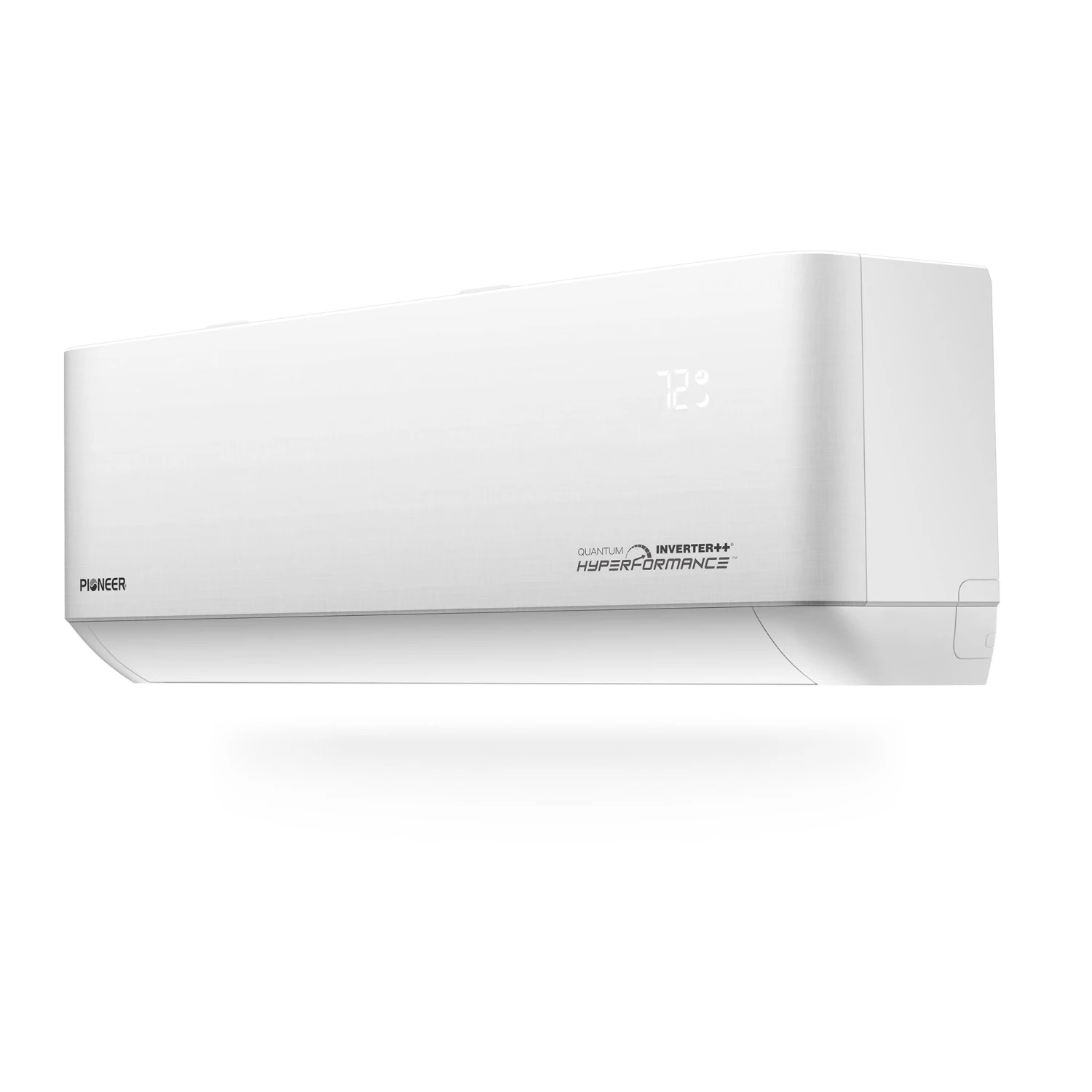

• Indoor Unit
  • Part Number: WT018GLSI25HLH
  • Air Flow (Turbo/Hi/Med/Lo/Mute): 735/676/529/423/394 CFM
  • Sound Level (Turbo/Hi/Med/Lo/Mute): 48/45/40/37/34 dB(A)
  • Product Dimensions (WDH): 43″-1/8 x 8″-3/4 x 13″ Inches
  • Carton Dimensions (WDH): 45″-7/8 x 11″-5/8 x 16″ Inches
  • Net / Gross Weight: 30.9 / 35.3 lbs.

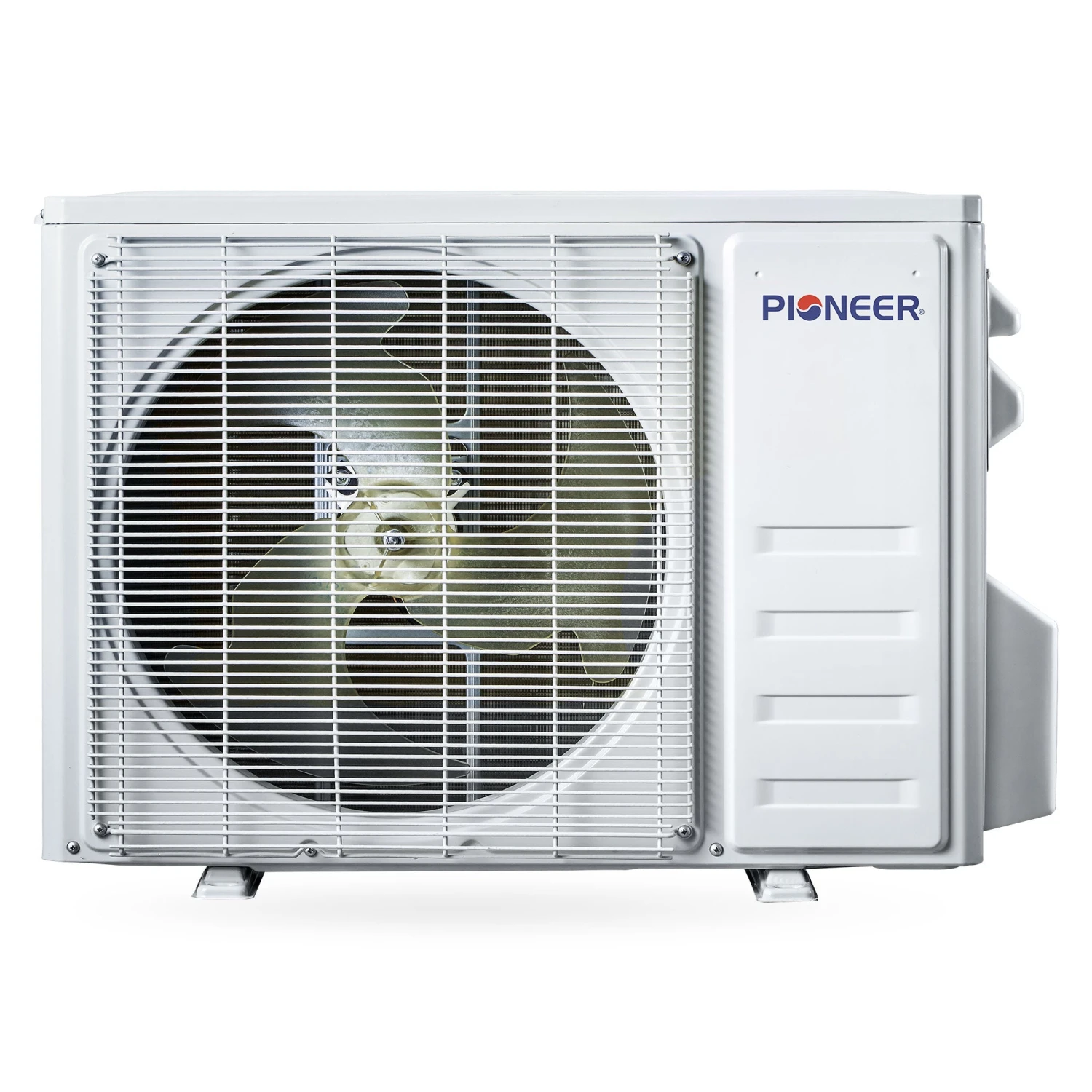

• Outdoor Unit
  • Part Number: YN018GLSI25RPH
  • Breaker Needed: 30A (double-pole)
  • Sound Level: 58 dB(A)
  • Net Dimensions (WDH): 36″-1/2 x 15″ x 27″-1/2 Inches
  • Carton Dimensions (WDH): 37″-3/8 x 16″-1/2 x 28″-7/8 Inches
  • Net / Gross Weight: 93.7 / 102.5 lbs.

Dimension Chart

43⅛

8¾

13

36½

15

27½

2¼

¾

8½
