Pioneer® Diamante Pro™ 9,000 BTU 20 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump With 16 Ft. Kit

Summary

• High Efficiency Diamante Pro™ Ductless Mini Split Heat Pump System
• Cooling capacity: 9,000 BTU/H with 20 SEER2 / 12 EER2 efficiency
• Heating capacity: 10,000 BTU/H with 10.0 HSPF2 / 3.81 COP2 efficiency
• Voltage: 208/230V, 60Hz, 1Ph
• High Wall-Mounted Ductless Air Conditioning & Heating System
• Variable-Speed DC Inverter Driven Performance
• Factory-Precharged with Environmentally Friendly R454b Refrigerant
• Standard Ambient Range Operation (As low as -4°F in Heating / As high as 122°F in Cooling)

Features

• Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
• Dual-Drainage Ports
• Washable, Reusable Air Filters
• Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)

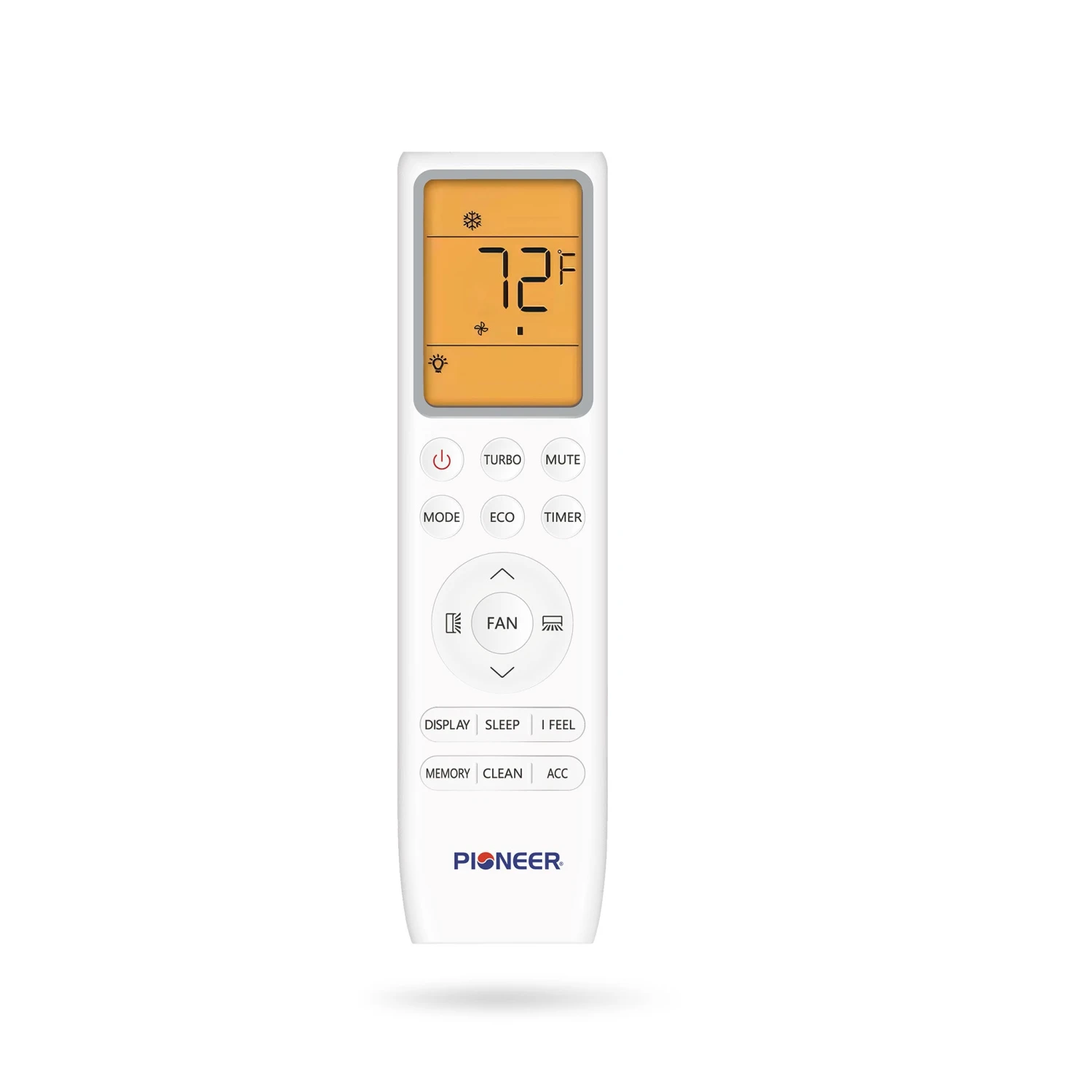

• Functional Remote with:
  • ECO and SLEEP Modes, for Energy-Conservation
  • Timer On/Off Control
  • TURBO, for Times of High-Demand
  • Self-Clean Cycle
  • MEMORY, to Recall Favorite Settings
  • IFEEL, to Detect and Adjust to Local Temperature

Technical Information & Performance

• AHRI Certificate
• Energy Guide

• System Kit
  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 9,000 BTU/h
  • Cooling Capacity Range: 2,050 ~ 10,900 BTU/h
  • Cooling SEER2: 20.0 BTU/W.h
  • Cooling EER2: 12.0 BTU/W.h
  • Heating Rated Capacity: 10,000 BTU/h
  • Heating Capacity Range: 2,050 ~ 12,200 BTU/h
  • Heating HSPF2 (Region IV): 10.0 / 8.5 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 3.81 / 2.1 W/W
  • Refrigerant Type: R454b
  • Suitable Area: 100~350 Sq.F
  • Piping Diameter: 1/4 x 3/8″
  • AHRI Reference: 217048741

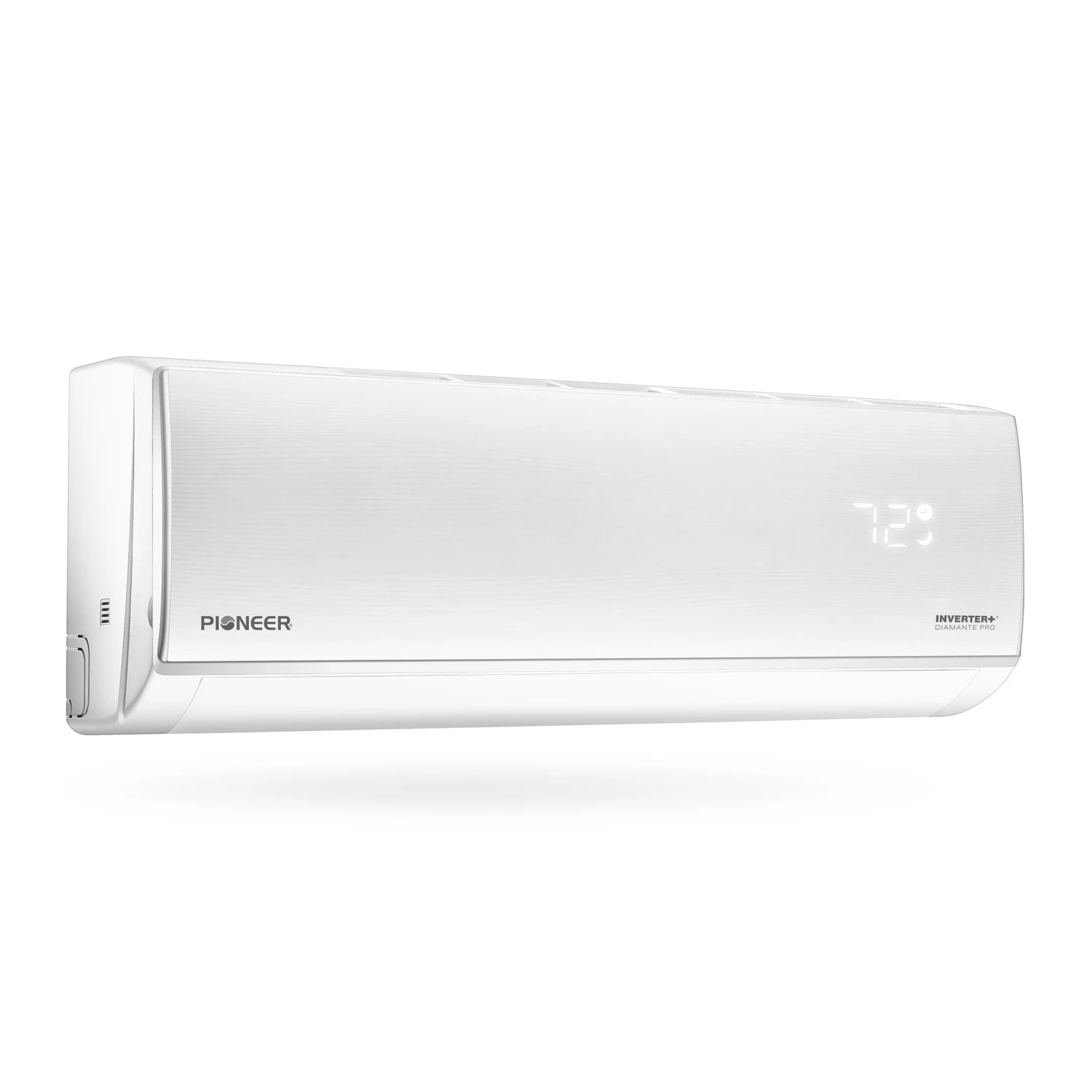

• Indoor Unit
  • Part Number: WT009GLSI20HLF
  • Air Flow (Turbo/Hi/Med/Lo/Mute): 342 / 270 / 235 / 200 / 152 CFM
  • Sound Level (Turbo/Hi/Med/Lo/Mute): 43 / 41 / 36 / 31 / 29 dB(A)
  • Product Dimensions (WDH): 31″-7/8 x 8″ x 11″-1/2 Inches
  • Carton Dimensions (WDH): 34″-7/8 x 10″-3/4 x 14″-3/8 Inches
  • Net / Gross Weight: 19.8 / 26.5 lbs.

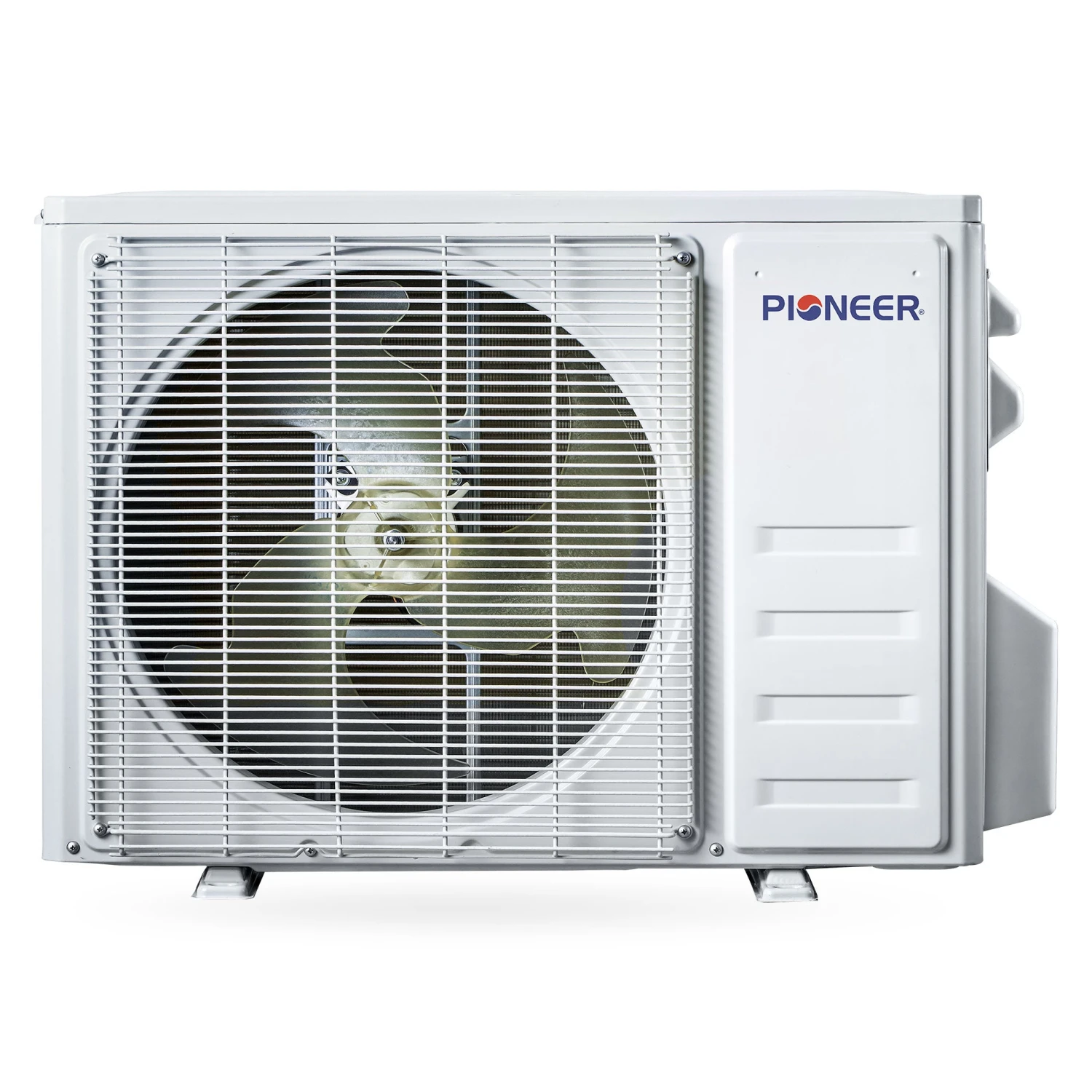

• Outdoor Unit
  • Part Number: YN009GLSI20RPF
  • Breaker Needed: 15A (single-pole)
  • Sound Level: 54 dB(A)
  • Net Dimensions (WDH): 31″ x 11″-1/2 x 19″-3/8 Inches
  • Carton Dimensions (WDH): 33″ x 13″-3/8 x 22″-3/4 Inches
  • Net / Gross Weight: 48.5 / 59.5 lbs.

Dimension Chart

31⅞

8

11½

31

11½

19⅜

2¼

¾

8½
