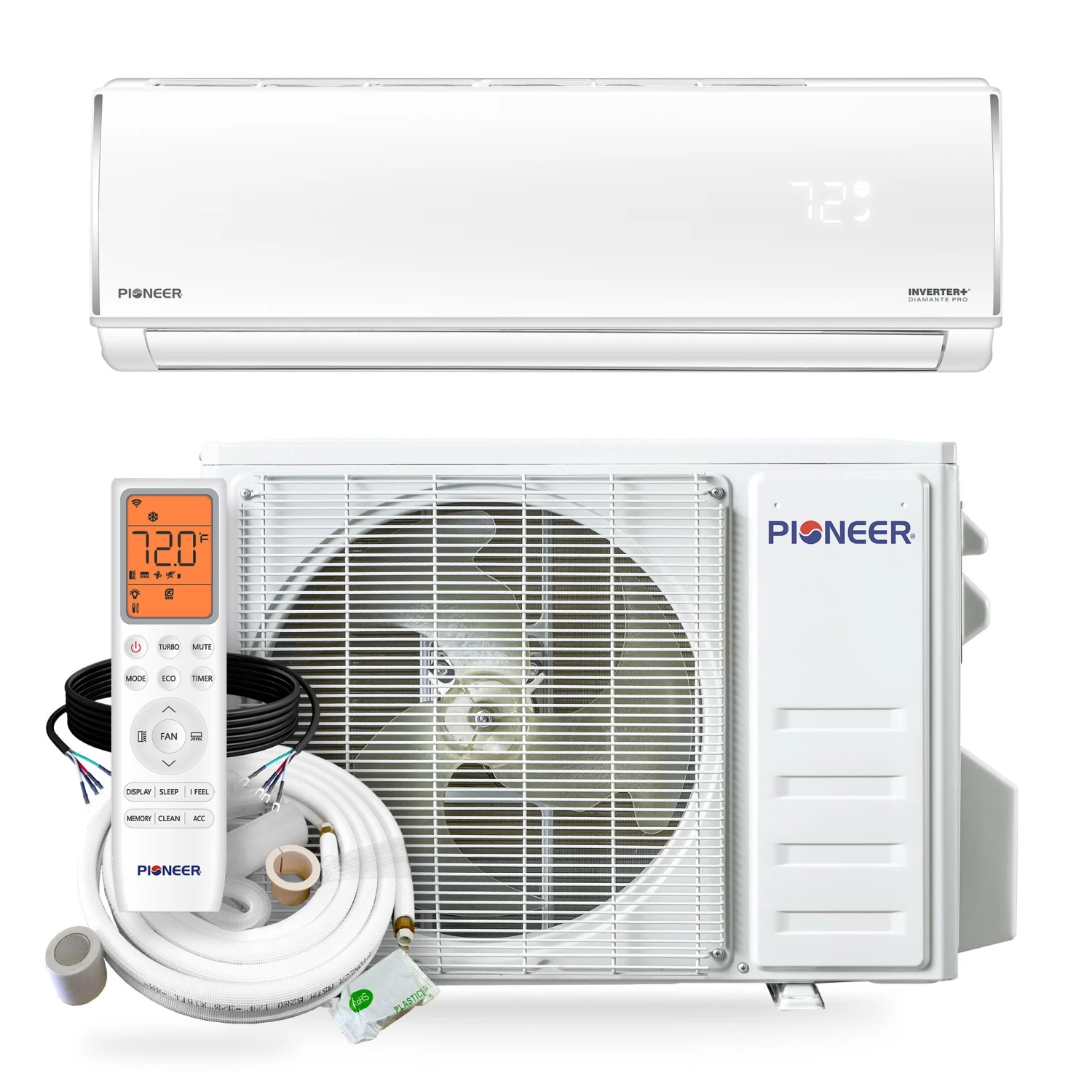

Pioneer® Diamante Pro™ 18,000 BTU 21 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump With 16 Ft. Kit

Summary

• High Efficiency Diamante Pro™ Ductless Mini Split Heat Pump System
• Cooling capacity: 18,000 BTU/H with 21 SEER2 / 11 EER2 efficiency
• Heating capacity: 19,000 BTU/H with 9.5 HSPF2 / 3.41 COP2 efficiency
• Voltage: 208/230V, 60Hz, 1Ph
• High Wall-Mounted Ductless Air Conditioning & Heating System
• Variable-Speed DC Inverter Driven Performance
• Factory-Precharged with Environmentally Friendly R454b Refrigerant
• Low Ambient Range Operation (As low as -4°F in Heating / As high as 122°F in Cooling)

Features

• Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
• Dual-Drainage Ports
• Washable, Reusable Air Filters
• Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)

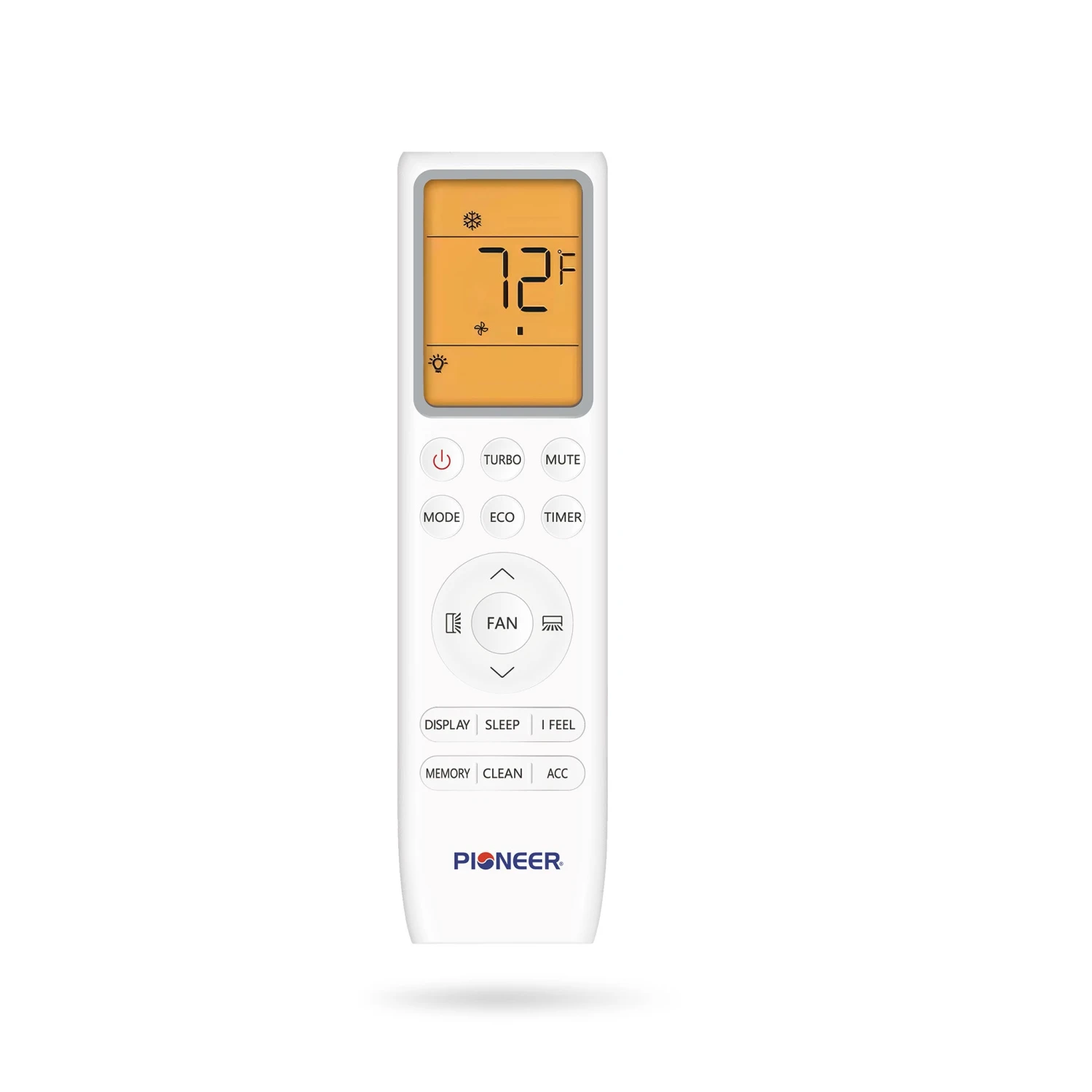

• Functional Remote with:
  • ECO and SLEEP Modes, for Energy-Conservation
  • Timer On/Off Control
  • TURBO, for Times of High-Demand
  • Self-Clean Cycle
  • MEMORY, to Recall Favorite Settings
  • IFEEL, to Detect and Adjust to Local Temperature

Technical Information & Performance

• AHRI Certificate
• Energy Guide

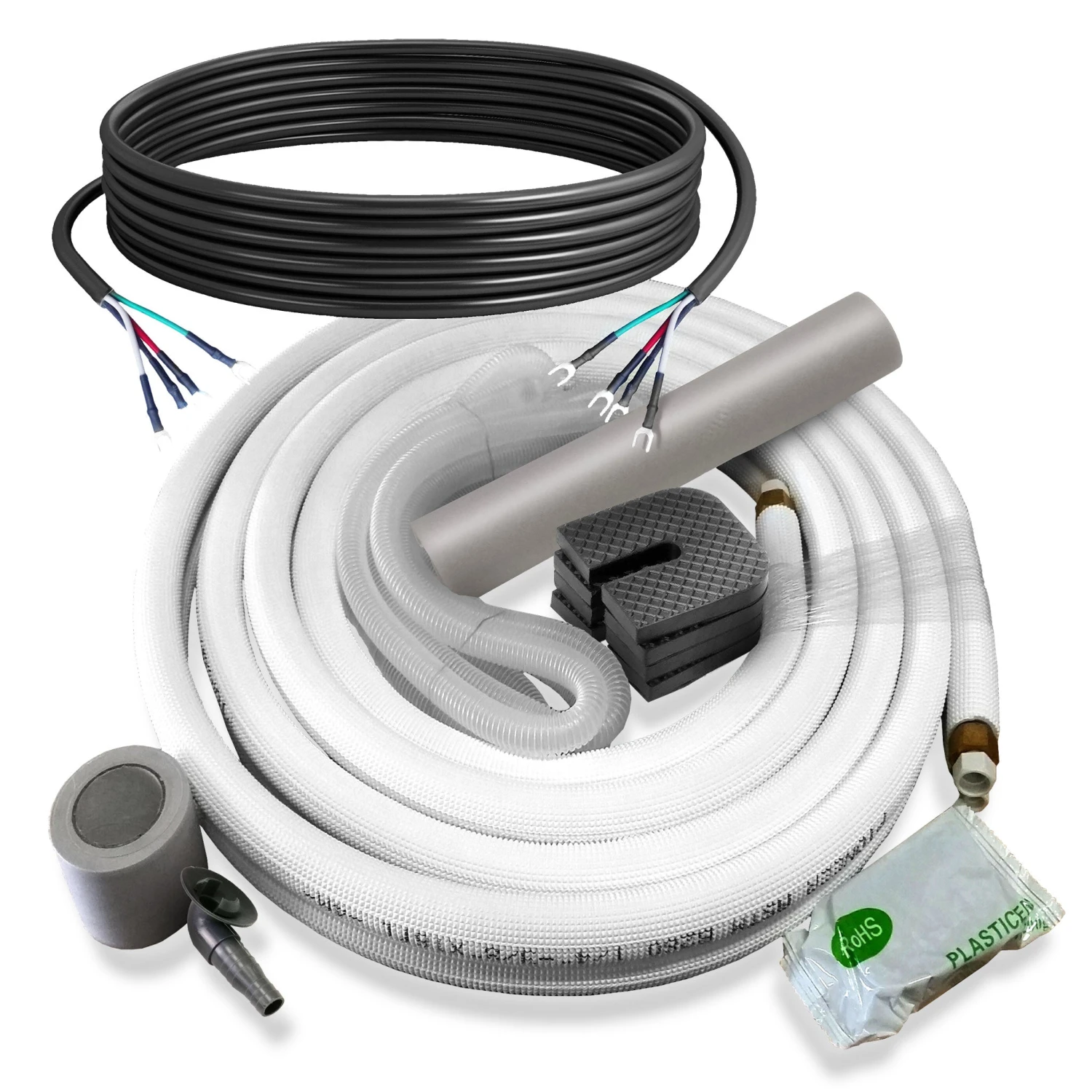

• System Kit
  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 18,000 BTU/h
  • Cooling Capacity Range: 4,090 ~ 18,400 BTU/h
  • Cooling SEER2: 21.0 BTU/W.h
  • Cooling EER2: 11.0 BTU/W.h
  • Heating Rated Capacity: 19,000 BTU/h
  • Heating Capacity Range: 4,090 ~ 19,000 BTU/h
  • Heating HSPF2 (Region IV): 9.5 / 8.2 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 3.41 / 1.8 W/W
  • Refrigerant Type: R454b
  • Suitable Area: 500~750 Sq.F
  • Piping Diameter: 1/4 x 3/8″
  • AHRI Reference: 217048744

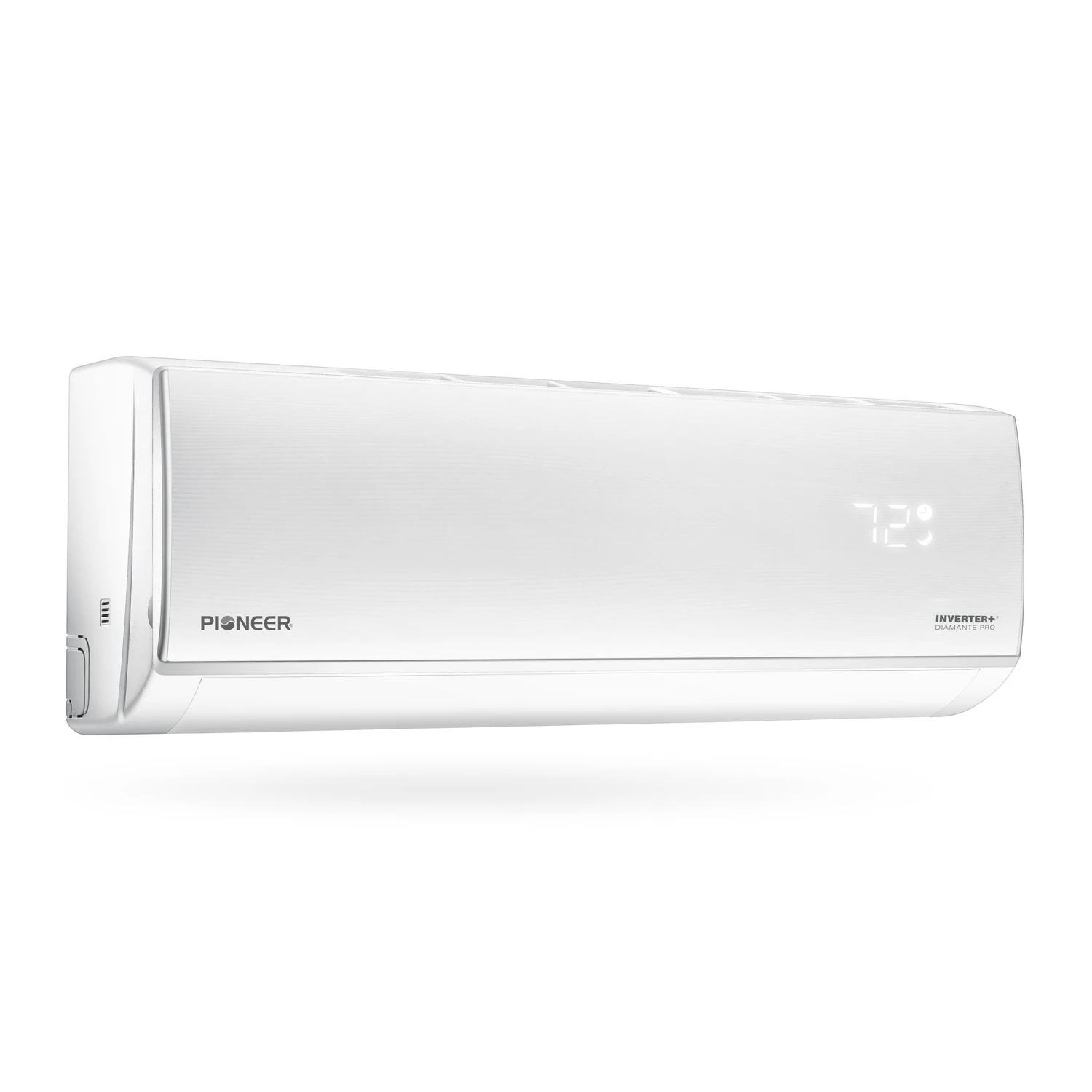

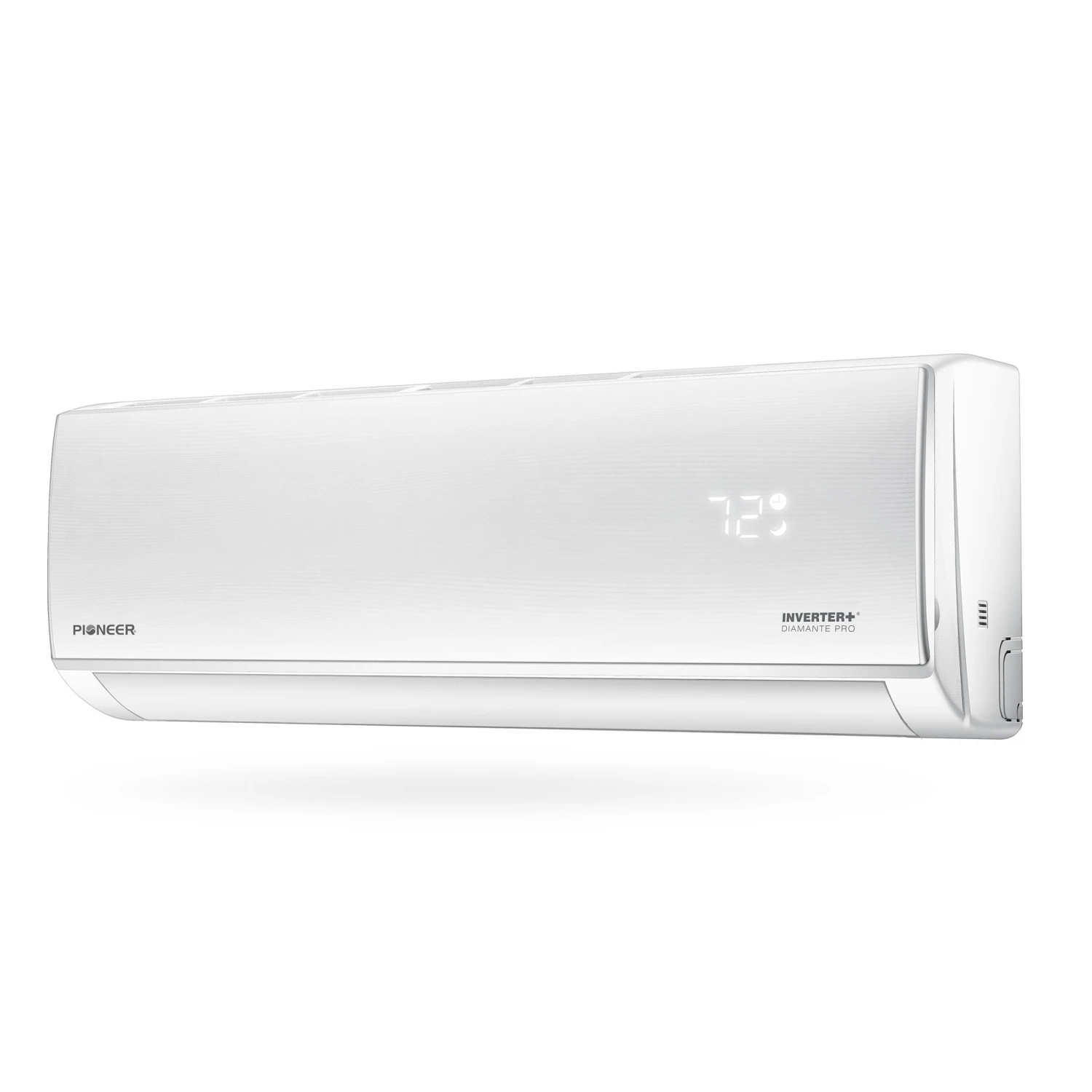

• Indoor Unit
  • Part Number: WT018GLSI20HLF
  • Air Flow (Turbo/Hi/Med/Lo/Mute): 617 / 575 / 511 / 411 / 382 CFM
  • Sound Level (Turbo/Hi/Med/Lo/Mute): 49 / 47 / 42 / 37 / 32 dB(A)
  • Product Dimensions (WDH): 39″-3/4 x 9″ x 12″-3/8 Inches
  • Carton Dimensions (WDH): 43″-1/8 x 11″-3/4 x 15″-3/8 Inches
  • Net / Gross Weight: 27.6 / 33.7 lbs.

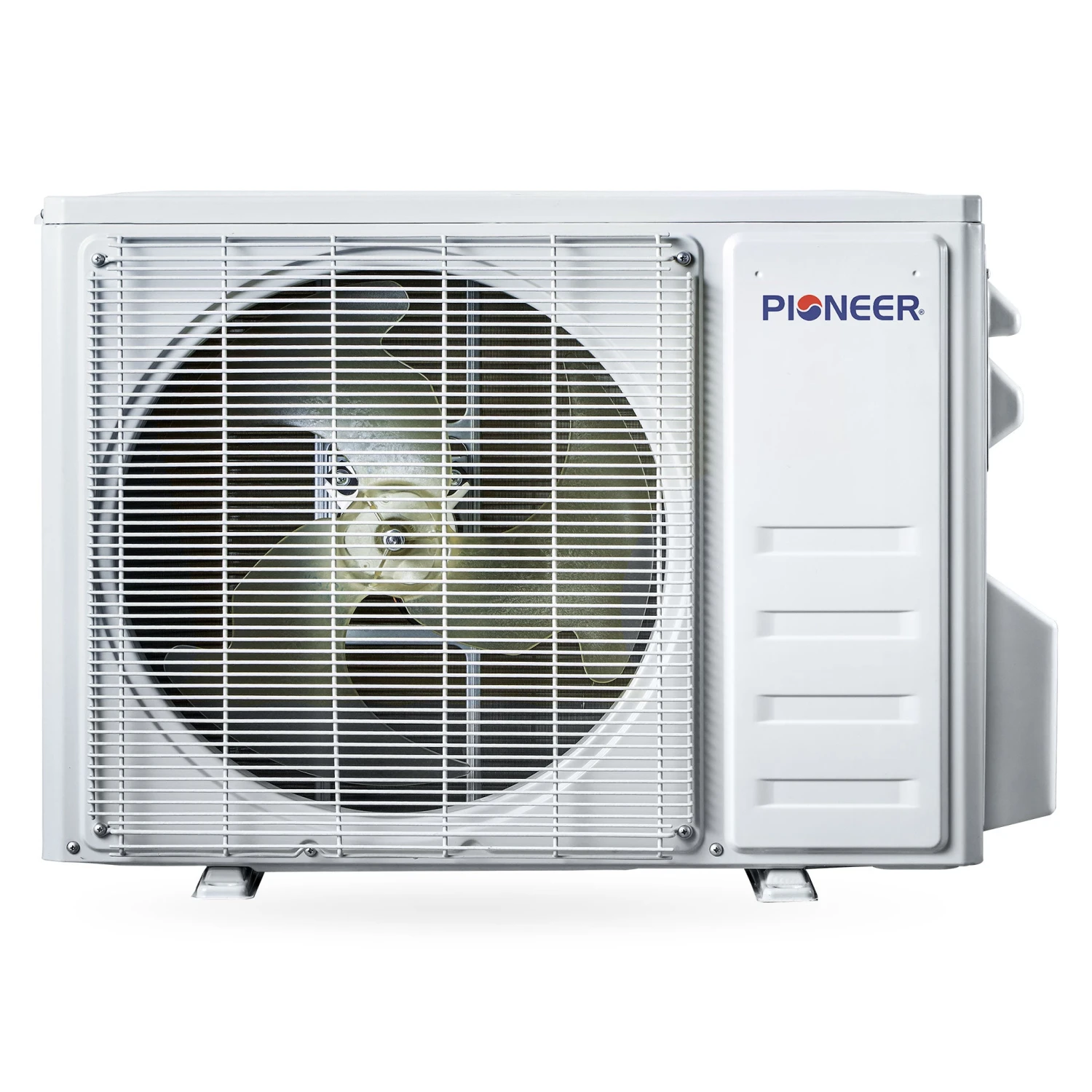

• Outdoor Unit
  • Part Number: YN018GLSI20RPF
  • Breaker Needed: 20A (single-pole)
  • Sound Level: 55 dB(A)
  • Net Dimensions (WDH): 34″ x 13″-3/4 x 23″-3/4 Inches
  • Carton Dimensions (WDH): 35″-1/2 x 16″ x 27″ Inches
  • Net / Gross Weight: 70.5 / 82.7 lbs

Dimension Chart

39¾

9

12⅜

34

13¾

23¾

2¼

¾

8½
